Flat-cut Hanging Signs
Precision-cut hanging signs with a clean architectural profile.
Flat-cut Hanging Signs use precision-cut aluminum or 304 stainless steel panels suspended from a matching mounting arm assembly. This style is ideal for refined pedestrian-facing signage where crisp shape, durable finish, and simple non-illuminated visibility are the priority. Standard material thicknesses are typically 3 mm, 5 mm, or 10 mm, with final construction selected around size, weight, finish, and installation requirements.
Construction Style
Flat-cut suspended panel
Material Options
Aluminum or 304 stainless steel
Support
Quote to production
Production Focus
Designed for crisp cut accuracy, durable suspended hardware,
balanced arm geometry, clean finishing, and installer-ready
documentation.
Built for
project partners
Signage Companies
Design Firms
Franchise Owners
Corporate Accounts
A precision-cut metal panel is suspended from a projecting mounting arm to create a light, architectural look. This style emphasizes silhouette, finish quality, and readable daytime branding rather than cabinet depth.
Artwork shape, overall panel size, material thickness, metal type, finish, mounting arm style, hanging hardware, wall conditions, projection, chain or strap details, freight, and installation requirements.
Technical Specifications
Fabrication data for Flat-cut Hanging Signs.
Review flat-cut panel construction, thickness options, mounting arm assemblies, hanging hardware, finish planning, installation coordination, and quote requirements.
Final specificationConfirmed after artwork and site review
StyleFlat-cut suspended sign panel
MaterialsAluminum or 304 stainless steel
ThicknessTypically 3 mm, 5 mm, or 10 mm
HardwareMounting arm included
Hanging OptionsLeather strap, D-hook & chain
1 / Construction
Suspended flat-cut sign construction with multiple hanging hardware options.
The sign panel is precision cut from metal, finished to the approved color or metal treatment, and suspended from a matching mounting arm. Hanging styles can include leather strap, D-hook and chain, or other project-specific hardware.
Displayed System

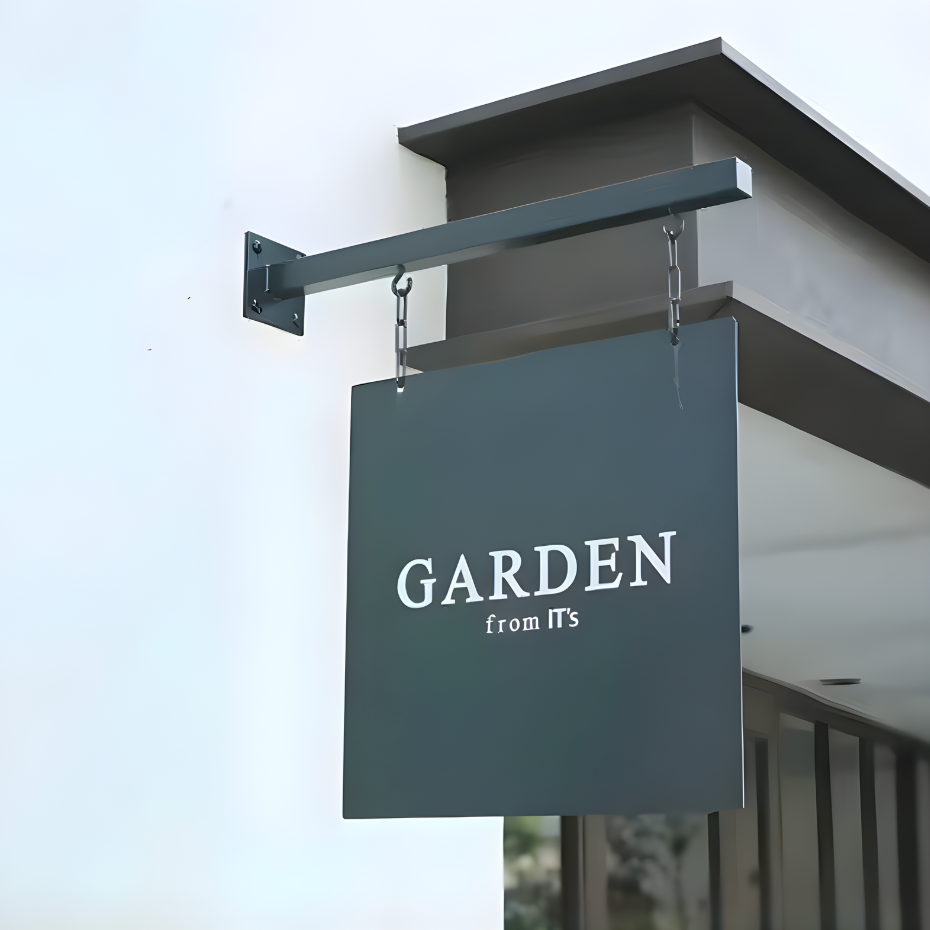

D-hook & Chain Flat-cut Hanging Sign
The technical imagery for this page will show the D-hook and chain suspension style, which is one of the most common and straightforward hanging configurations.
1
D-hook & Chain Cross Section
Technical image placeholder
Cross SectionFlat-cut metal panel + D-hook + chain + projecting arm
Future drawing will show the cut metal panel, top hole or welded attachment point, D-hook connection, chain suspension, arm geometry, wall plate, anchors, and hardware layout.
3D
D-hook & Chain Finished Rendering
Product image placeholder
Finished EffectRefined suspended sign presentation
The suspended panel hangs cleanly below the projecting arm for a pedestrian-friendly profile with strong daytime visibility and a lightweight architectural feel.
PanelFlat-cut aluminum or 304 stainless steel
Standard Thicknesses3 mm, 5 mm, or 10 mm
Display HardwareD-hook and chain
Construction Details
Primary components coordinated for a durable suspended sign system.
1
Artwork & Cut Path ReviewShape, voids, and edge conditions confirmed
Artwork is reviewed for cut accuracy, internal openings, bridge requirements, corner radii, edge spacing, mounting locations, and readable proportions.
2
Panel FabricationPrecision-cut metal panel
The sign face is cut from aluminum or 304 stainless steel and finished to the approved thickness, shape, edge quality, and hole or attachment-point requirements.
3
Mounting Arm AssemblyProject-specific projecting support
The arm and wall plate are fabricated around the sign size, weight, projection, finish, hanging geometry, and installation requirements.
4
Hanging HardwareLeather strap, D-hook and chain, or project-specific
Hardware type is selected around appearance, adjustability, exterior durability, load path, maintenance, and the desired visual character.
5
Finish & Installation PrepCoating, protection, and field instructions
Edges, surfaces, finish quality, hardware finish, arm alignment, packaging, installation pattern, anchor requirements, and wall notes are finalized before shipment.
2 / Core Specs
Primary production specifications.
Final construction depends on artwork shape, panel size, selected thickness, metal type, finish, hanging hardware, wall projection, site conditions, and installation requirements.
Specification
Planning Standard
Production Notes
Product Style
Flat-cut Hanging Sign
A precision-cut non-illuminated metal panel suspended from a projecting mounting arm system.
Panel Materials
Aluminum or 304 stainless steel
Material is selected around finish, corrosion resistance, weight, rigidity, edge quality, and the desired architectural appearance.
Standard Thicknesses
Typically 3 mm, 5 mm, or 10 mm
Final thickness depends on sign size, structural rigidity, wind exposure, hanging method, finish requirements, and visual preference.
Mounting Arm
Included with the sign system
Arm projection, wall plate size, attachment orientation, material, and finish are coordinated around the panel size, weight, and building conditions.
Hanging Hardware
Leather strap, D-hook and chain, or project-specific
The hardware system is selected around style, adjustability, environment, weight, maintenance, and required visual character.
Displayed Image System
D-hook and chain
The cross section and 3D rendering for this page are intended to show the D-hook and chain suspension style only.
Graphic Approach
Cut form, paint, print, vinyl, or applied graphics
Final graphic treatment depends on the selected metal, face design, brand colors, finish, durability requirements, and overall sign aesthetic.
Edge Quality
Finished cut edges by project
Deburring, edge dressing, polishing, or protective finishing may be coordinated depending on material, thickness, finish, and visibility of the edges.
Application
Interior or exterior
Exterior builds require project-specific corrosion protection, compatible hardware, sealed wall penetrations, finish durability, and structural coordination.
Mounting
Engineered wall plate and projecting arm
Wall substrate, backing, anchor type, projection, load path, and installation access determine the final mounting assembly.
3 / Size & Thickness
Panel dimensions, rigidity, and suspension geometry are engineered together.
Although 3 mm, 5 mm, and 10 mm are the most common thicknesses, final panel sizing and thickness are selected around the sign shape, unsupported span, projection, wind exposure, finish, and desired visual weight.
Critical Planning Rule
Overall panel size, thickness, hole or attachment-point placement, arm projection, hanging length, hardware capacity, wind movement, wall plate, and anchor loads must be coordinated before production.
Panel Thickness3 mm, 5 mm, or 10 mm common
The appropriate thickness depends on panel size, rigidity, metal type, edge appearance, hardware load, wind exposure, and the desired finished look.
Overall Sign SizeCustom by project
Artwork width, height, internal cutouts, readable distance, wall area, and projection restrictions are reviewed together.
Cut ShapeLogo, wordmark, panel silhouette, or custom form
Complex shapes, narrow bridges, internal openings, and unsupported spans are checked for manufacturability and durability.
Hanging LengthProject-specific suspension drop
Chain length or strap drop is coordinated around visibility, wall height, pedestrian clearance, façade details, and the desired visual balance.
Mounting Arm ProjectionAdjusted to suit the panel
Arm length is selected around panel width, hanging geometry, wall clearance, sight lines, and local code or landlord restrictions.
Attachment PointsHole or fitting placement reviewed
Top attachment locations are coordinated to keep the panel balanced while protecting edge strength and preserving the design.
RigidityFlatness and stability reviewed
Panel thickness, material, shape, wind movement, span, and hardware placement all affect how rigidly the sign hangs in service.
Arm & Wall PlateEngineered for the sign load
Plate size, material, arm geometry, welds, fasteners, and anchors are selected around the total suspended weight and site conditions.
Wind & MotionExterior movement considered
Panel area, chain or strap behavior, torsion, swing, exposure, and anchor loading are reviewed for exterior applications.
Shipping & InstallProtection and access planned
Packaging, arm removability, finish protection, field assembly, storefront access, and installation sequence are coordinated before shipment.
4 / Mounting
Suspended sign hardware selected around structure, durability, and appearance.
The mounting arm is part of the sign system. Hanging style, arm geometry, wall plate, anchors, projection, and finish are selected together so the panel hangs correctly and the complete sign reads cleanly from the street.
Hanging Styles
Leather strap, D-hook and chain, or project-specific hardware
D-hook and chain is the displayed image system on this page, but alternate hanging details can be coordinated when the design calls for a softer, more decorative, or more minimal presentation.
D-hook & ChainStandard displayed system
Common for durable exterior use where adjustability, straightforward fabrication, and clean visual suspension are desired.
Leather StrapDecorative alternate option
Often used for boutique or hospitality aesthetics, subject to project review for environment, maintenance, and long-term durability.
Mounting ArmIncluded fabricated support
Arm shape, length, plate connection, and finish are tailored around the sign panel and overall design intent.
Wall PlateEngineered attachment base
Plate dimensions, thickness, hole pattern, welds, and finish are coordinated with the arm, sign load, and wall conditions.
Suspension HardwareProject-specific load path
Chain gauge, D-hook size, leather strap construction, fittings, fasteners, and attachment points are selected around load and appearance.
Wall ConstructionConcrete, masonry, wood, steel, or framed wall
Substrate, backing, finish layers, concealed conditions, and access determine the appropriate anchor and plate strategy.
Anchors & FastenersSubstrate- and load-specific
Mechanical anchors, structural screws, through-bolts, backing plates, sealant, and corrosion compatibility are confirmed during final review.
Balance & AlignmentPanel hangs level and centered
Attachment-point spacing, chain lengths, arm position, and sign center of gravity are reviewed so the installed sign sits correctly.
Exterior DurabilityHardware and finish compatibility reviewed
Dissimilar metal contact, corrosion resistance, finish wear, water exposure, and maintenance expectations are considered for exterior use.
Engineering & PermitsJurisdiction-specific review
Projection limits, pedestrian clearances, structural calculations, sign area, and landlord requirements may need review.
5 / Materials & Finish
Material and finish selected around appearance, rigidity, and environment.
The metal panel, mounting arm, wall plate, hanging hardware, graphics, and finish are coordinated as one complete suspended sign system.
Aluminum PanelLightweight and versatile
Suitable for 3 mm, 5 mm, or 10 mm cut panels with painted, powder-coated, printed, or vinyl-applied finishes.
304 Stainless Steel PanelPremium architectural metal
Suitable for refined non-illuminated signage with brushed, polished, painted, plated, or other compatible premium finish treatments.
Aluminum Arm & PlateEfficient and durable support option
Often used where reduced weight and strong exterior finish flexibility are priorities.
304 Stainless Steel Arm & PlateHigh-end structural presentation
Often used where a more premium exposed metal look or enhanced corrosion resistance is desired.
Painted & Powder-Coated FinishesPantone/PMS or Sherwin-Williams matching
Color, gloss, texture, edge appearance, primer, pretreatment, and finish durability are coordinated with the selected metal.
Metallic PresentationsBrushed, polished, or plated appearance
Applicable finish direction, sheen, protection, and consistency are reviewed when a natural or premium metal look is required.
Graphic TreatmentsVinyl, UV print, paint, or dimensional applications
Graphic method is chosen around detail level, color accuracy, exterior durability, substrate, and the desired final aesthetic.
Hardware FinishCoordinated with the sign system
Chain, D-hooks, fittings, arm, and plate are typically specified to visually match or complement the primary sign finish.
6 / Quote Prep
Information required for an accurate quote.
Supplying the core project details upfront helps confirm panel size, thickness, material, finish, hanging hardware, mounting arm geometry, site conditions, pricing, production requirements, freight, and lead time.
Best Starting Point
Send the artwork and site photos.
Vector artwork and clear wall information let us review the cut shape, metal thickness, hanging hardware, projection, arm design, finish, anchors, and installation access.
Start a QuoteArtworkAI, EPS, SVG, or PDF
Vector files are preferred. Provide the sign shape, logo, text, and any internal cutout details.
Sign SizeWidth, height, and approximate projection
Provide desired panel dimensions, wall projection, hanging drop, and available façade area.
MaterialAluminum or 304 stainless steel
Confirm the preferred metal, target finish, and whether a lighter or more premium presentation is the priority.
Thickness3 mm, 5 mm, 10 mm, or preferred target
Provide a preferred thickness if known, or allow us to recommend based on size, span, and project conditions.
Hanging StyleLeather strap or D-hook and chain
Confirm the desired hardware style even though the page imagery will show only the D-hook and chain version.
Finish & GraphicsColor, print, vinyl, or metal look
Provide Pantone/PMS, Sherwin-Williams, finish references, brand standards, and any printed or applied graphic requirements.
Install LocationWall construction and site photos
Include substrate, internal backing, elevation, exposure, storefront conditions, and any landlord or permit constraints.
Shipping & InstallationAccess, packaging, and field sequence
Provide lift requirements, delivery restrictions, field assembly preferences, and any special handling considerations.
Wall & StructureSubstrate, backing, and anchors
Provide wall assembly information, attachment access, concealed conditions, structural drawings, or engineer requirements when available.
Projection & ClearanceArm length and public-way limits
Confirm façade details, required clearances, local projection limits, orientation, sight lines, and adjacent architectural elements.
Code, Access & FreightPermit and installation constraints
Provide sign-area limits, projection limits, lift access, delivery restrictions, installation sequence, and special packaging needs.
