Retail storefronts, hospitality districts, restaurants, pedestrian corridors, mixed-use developments, corporate campuses, wayfinding programs, and projecting identity signs that require illuminated visibility from both directions.
Double-sided illuminated blade signs with precision-cut metal faces.
Hollow-out Blade Signs use fabricated aluminum or 304 stainless steel faces with precision-cut graphics backed by translucent acrylic. The standard configuration is double-sided for illuminated visibility from both directions along the façade. Single-sided construction is available upon request when only one primary viewing direction is needed.
Opaque fabricated metal faces define the cabinet while illuminated cut-out graphics reveal the translucent acrylic backing. The standard presentation is double-sided; a single-sided version can be produced upon request.
Artwork, cut-out feasibility, overall size, cabinet depth, acrylic backing, frame and arm material, finish, wall structure, anchors, LED color, power, service access, and permitting inputs.
Fabrication data for Hollow-out Blade Signs.
Review the standard double-sided Hollow-out Blade Sign construction, dimensional planning, cut-out metal faces, acrylic diffusion, projecting-arm structure, lighting, service access, and quote requirements. Single-sided construction is available upon request.
Double-sided Hollow-out Blade Sign system.
The standard presentation below shows the double-sided configuration with two opposing hollow-out metal faces, translucent acrylic backing, internal LED illumination, a fabricated projecting cabinet, and an engineered wall-arm assembly. Single-sided construction is available upon request.
Double-Sided Hollow-out Blade Sign
Two opposing illuminated hollow-out faces provide visibility from both directions along the façade while the projecting cabinet, support arms, and service method are engineered around sign size, wall condition, wind exposure, and maintenance access.
The drawing shows the opposing metal faces, translucent acrylic backing, internal LED layout, center support structure, and overall cabinet depth relationship.

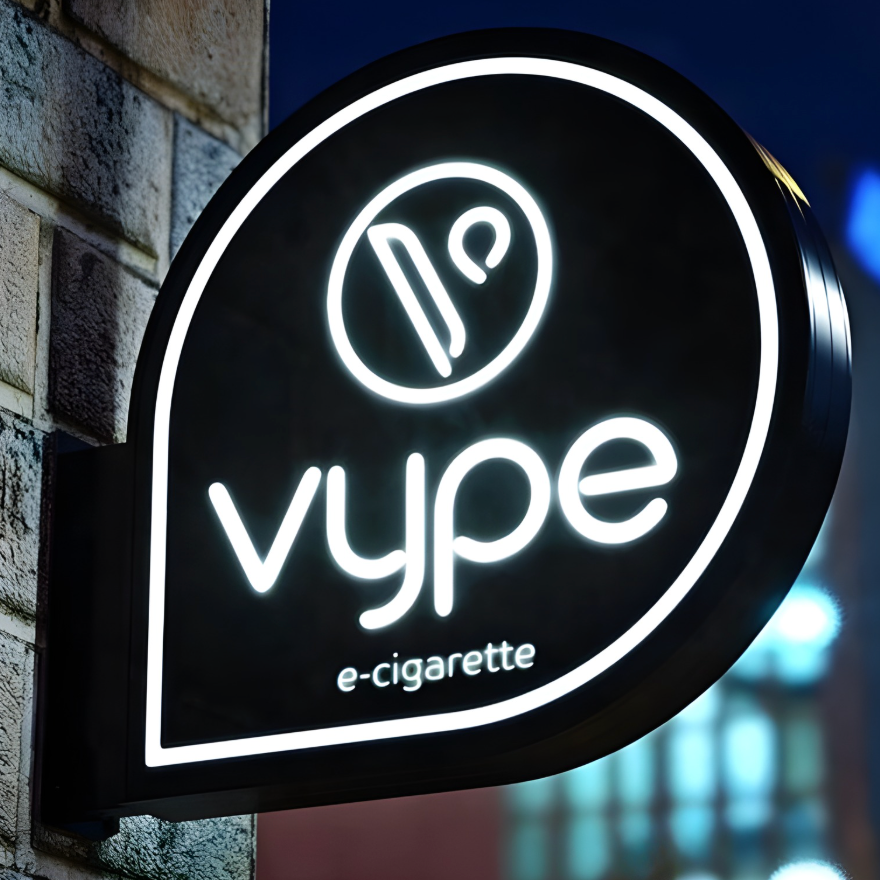

The finished sign presents illuminated hollow-out graphics to both directions of travel with a clean metal-forward appearance. Single-sided construction remains possible upon request.
Plate size, arm count, reinforcement, welds, fastener pattern, and finish are engineered around the cabinet, wall condition, and projection requirements.
The cabinet supports two opposing cut-out faces, acrylic backing, internal framing, LED placement, drainage, service access, and arm attachment.
Acrylic thickness, color, diffusion, fastening, graphic alignment, and day/night appearance are confirmed from approved artwork.
LED placement, power supplies, controls, routing, labeling, and access are coordinated before fabrication for balanced double-sided output.
Mounting pattern, wall penetrations, sealant interfaces, lifting, and installer notes are finalized before shipment.
Primary production specifications.
Final construction depends on viewing configuration, artwork, cut-out geometry, cabinet size and depth, acrylic backing, internal framing, LED layout, service access, wall construction, exposure, and installation requirements.
Cut-out geometry, cabinet depth, and structural support are engineered together.
The approximately 2.5-inch minimum depth is a starting point only. Final depth, overall size, acrylic spacing, arm structure, lighting, service access, wind exposure, and wall attachment are reviewed as one assembly.
Orientation and viewing paths establish the required cabinet and internal framing system.
Final depth depends on LED throw, acrylic diffusion, face count, framing, service access, and visual proportion.
Narrow strokes, isolated centers, small counters, sharp corners, and long unsupported openings may require tabs, bridges, radii, reinforcement, or artwork adjustment.
Artwork, viewing distance, projection limits, structural loads, acrylic span, handling, freight, and site access are reviewed.
Backing position, fasteners, spacers, adhesives, light diffusion, heat, and replacement access are coordinated behind the cut-out face.
Arm length, wall plate, cabinet location, clearances, sight lines, and local projecting-sign restrictions are coordinated.
Arm count, spacing, plate dimensions, welds, anchors, concealed backing, and attachment access are reviewed.
Cabinet area, projection, arm moment, wall capacity, anchor loads, exposure, and jurisdictional requirements are evaluated.
Arm removability, service-panel protection, packaging, lifts, storefront access, field assembly, and installation order are planned.
Panel removal, fastener access, arm interference, controller location, and field service procedures are confirmed before fabrication.
Controlled illumination through acrylic-backed cut-out graphics.
Static white illumination is the standard platform, with RGBW available when specified and engineered for cabinet depth, acrylic transmission, controls, power access, and the required color performance.
LED layout is selected around face count, cut-out area, acrylic color, cabinet depth, internal framing, reflective surfaces, service access, and target brightness.
Warm through daylight white is coordinated with the acrylic backing, graphic color, environment, and approved brand appearance.
Available by project with a dedicated white channel, compatible controls, power planning, ventilation, and accessible controller location.
LED spacing, center framing, reflective surfaces, depth, and acrylic diffusion are coordinated to keep both faces visually consistent.
When only one primary viewing direction is required, the cabinet can be revised to a single-faced configuration with project-specific backing and lighting.
Opening width, acrylic color, thickness, print or vinyl, LED distance, and internal reflections influence brightness and color.
Interior seams, acrylic overlap, fasteners, gaskets, baffles, and service-panel interfaces are detailed to limit unintended light leakage.
Power quantity, location, ventilation, circuit loading, disconnects, controls, and replacement access are confirmed.
Internal passages, wall penetrations, strain relief, grounding, weather protection, and installer connections are documented.
LED density, drivers, metal cabinet temperature, controller location, internal air volume, and exterior exposure are considered.
Panel seals, acrylic retention, weep paths, penetrations, corrosion protection, thermal cycling, and access are reviewed.
Materials selected around structure, cut-out quality, diffusion, and brand standards.
Cabinet, faces, arms, wall plate, acrylic backing, graphic treatment, finish, environment, lighting, service, and mounting are coordinated as one system.
Suitable for cabinets, hollow-out faces, wall plates, internal framing, powder coating, and custom-painted architectural finishes.
Suitable for hollow-out faces, cabinets, wall plates, brushed or polished presentation, paint, electroplating, and compatible premium finishes.
Color, thickness, diffusion, impact requirements, overlap, fastening, service access, and exterior exposure are selected around the cut-out design.
Colored acrylic supports solid illuminated color; translucent vinyl supports brand matching; UV printing supports gradients, imagery, and detailed artwork.
Edges, corners, counters, bridges, welds, and reinforcements are prepared to support clean finishing and safe acrylic installation.
Interior coatings, acrylic overlap, baffles, gaskets, seams, and panel interfaces are coordinated for diffusion and light containment.
Pantone/PMS, Sherwin-Williams, physical samples, gloss, texture, and architectural references can be coordinated by project.
Brushed, polished, mirror, plated, electroplated, and PVD-style effects are reviewed for metal compatibility, grain direction, handling, and exposure.
Information required for an accurate quote.
Supplying the project details upfront helps confirm viewing configuration, hollow-out feasibility, cabinet depth, acrylic backing, lighting, structure, mounting, pricing, production requirements, freight, and lead time.
Vector artwork and clear wall information let us review cut-out strokes, bridges, counters, acrylic backing, projection, depth, arm structure, wall plate, anchors, power, and service access.
Start a QuoteVector files are preferred. Include both face layouts if the two sides use different graphics.
Confirm both viewing directions, sign orientation, and pedestrian or traffic approach. Single-sided construction can be requested if preferred.
Provide target dimensions, available wall area, clearance limitations, and known code or landlord constraints.
Provide illuminated colors, vinyl or print references, gradients, imagery, day/night requirements, and separate artwork for each side when applicable.
Provide preferred material, paint or powder-coat color, brushed or polished references, and architectural finish requirements.
Include substrate, internal backing, elevation, access, exposure, sign height, available electrical service, and permit constraints.
Provide wall assembly information, attachment access, concealed conditions, structural drawings, or engineer requirements when available.
Confirm power location, wall penetrations, wire path through the arms, RGBW controller requirements, and installer responsibilities.
Provide projection limits, clearance requirements, lift access, delivery restrictions, installation sequence, and special packaging needs.
