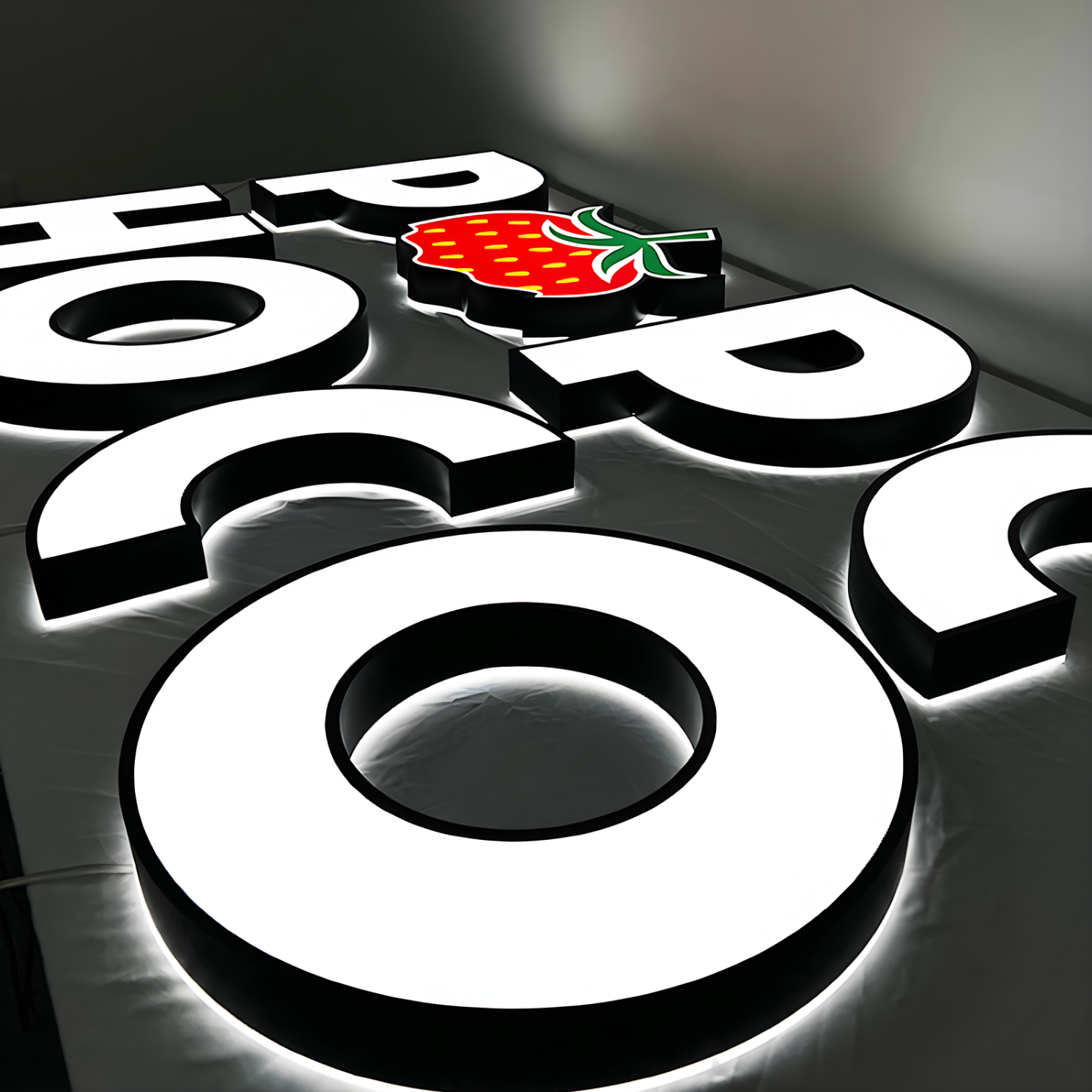

Trim-cap Dual-lit Channel Letters

Defined face illumination with a refined rear halo.

Trim-cap Dual-lit Channel Letters combine a bright acrylic face retained by a defined trim-cap profile with controlled rear halo lighting. Three internal LED configurations allow the build to be matched to the artwork, letter depth, service access, and required lighting output.

Lighting Style Front-lit + rear halo
Internal Systems Three configurations
Support Quote to production
Start a Quote Become a Partner
Trim-Cap Dual-Lit Channel Letters
Production Focus Designed for balanced face brightness, controlled halo output, clean approvals, and installer-ready production documentation.
Built for project partners
Signage Companies
Design Firms
Franchise Owners
Corporate Accounts
Best Applications

Premium storefronts, lobby signs, hospitality spaces, franchise rollouts, corporate interiors, retail environments, and branded commercial projects requiring both face and halo light.

Visual Effect

A bright acrylic face with a defined trim-cap perimeter paired with a soft rear halo, creating a dimensional illuminated effect with clear face-retention detail.

What We Help Confirm

Artwork feasibility, internal LED configuration, letter depth, face construction, return material, halo spacing, LED color, mounting, wiring exits, power, shipping, and production requirements.

Product technical guide

Trim-cap Dual-lit Channel Letter Construction

A translucent acrylic face retained by trim cap provides front illumination, while rear diffusion creates a controlled halo. Face retention, return depth, separate lighting directions, mounting clearance, wiring, and service access are coordinated for the approved artwork.

LightingFront + rear halo
FaceAcrylic with trim cap
ReturnsAluminum or stainless
UseInterior or exterior
DepthProject-specific
Face assemblyDefined trim-cap perimeter

The translucent acrylic face is retained by trim cap over fabricated returns for a clear front-lit presentation.

Rear illuminationControlled halo diffusion

Rear-facing LEDs and acrylic diffusion are planned around wall color, offset, letter depth, and the requested halo effect.

Lighting layoutBalanced front and rear output

LED placement, circuits, color temperature, wire exits, power supplies, and service access are confirmed for the finished effect.

Mounting interfacePattern or raceway as approved

Wall type, stand-off clearance, access, attachment, weather exposure, and local installer requirements guide the mounting plan.

Color and finishBrand references required

Face color, trim cap, returns, rear components, and illuminated colors follow the approved project specification.

Quality controlFace and halo checked

Dimensions, assembly, finish, front illumination, rear halo, wiring, packing, and QC photos are checked before shipment.

Production review

What is confirmed before fabrication

Final construction follows approved artwork, dimensions, finish, site conditions, mounting requirements, electrical details, and shipping constraints.

  1. 1
    Artwork feasibilityStroke width, letter size, returns, trim-cap profile, and halo clearances are reviewed.
  2. 2
    Lighting planFront and rear LED systems, color, power, wiring exits, diffusion, and service access are coordinated.
  3. 3
    Mounting approvalWall interface, stand-off distance, pattern or raceway, access, and installer notes are documented.
  4. 4
    Fabrication and QCProduction follows approved drawings, with face light, halo, finish, dimensions, and packing inspected before shipment.
Ready for a project-specific review?Send artwork, size, site notes, and the requested finish.
Start a Quote
