Vacuum-Formed Face Lightboxes
Dimensional formed faces for high-impact illuminated branding.
Vacuum-Formed Face Lightboxes use a heated translucent acrylic or polycarbonate sheet formed over a mold to create a dimensional pan, dome, or custom relief. The formed face is retained to an illuminated metal cabinet for strong visibility, depth, and architectural presence.
Lighting Style
Front-lit / face-lit
Face System
Vacuum-formed translucent face
Support
Quote to production
Production Focus
Designed for controlled face depth, accurate mold development,
consistent illumination, durable retention, and installer-ready documentation.
Built for
project partners
Signage Companies
Design Firms
Franchise Owners
Corporate Accounts
A dimensional translucent face projects outward from the cabinet, creating broad illumination, deeper visual presence, and a distinctive formed architectural profile.
Artwork feasibility, face profile, draw depth, material, graphics, cabinet size, retention, LED color, mounting, wiring, shipping, tooling, and production requirements.
Technical Specifications
Fabrication data for Vacuum-Formed Face Lightboxes.
Review formed-face construction, dimensional planning, illumination, materials, mounting, tooling, service access, and quote requirements.
Final specification
Confirmed after artwork review
Illumination3500K-6500K or RGBW
FaceVacuum-formed translucent sheet
ProfilePan, dome, or custom relief
CabinetFabricated aluminum
MountingProject-specific installation
2 / Core Specs
Primary production specifications.
Final construction depends on the approved artwork, face profile, draw depth, material, tooling, cabinet dimensions, lighting, mounting, service access, and installation conditions.
Specification
Planning Standard
Production Notes
Sign Style
Vacuum-Formed Face Lightbox
An illuminated metal cabinet fitted with a dimensional thermoformed translucent face.
Formed Face
Translucent acrylic or polycarbonate
Material and gauge are selected around size, draw depth, impact requirements, environment, and forming performance.
Face Profile
Pan, dome, embossed, or custom relief
The mold profile establishes dimensional depth, edge radii, draft, and the finished architectural appearance.
Forming Method
Vacuum thermoforming over an approved mold
Tooling, material heating, draw control, cooling, and trimming are coordinated after artwork approval.
Graphics
Pigmented face, translucent vinyl, or form-compatible printing
Graphic method is selected around relief, color, distortion, detail, durability, and the required illuminated appearance.
Face Retention
Engineered perimeter retainer
The retention system secures the formed face and provides the required service access.
Cabinet
Fabricated aluminum
Provides structure, return depth, internal framing, LED support, wiring space, and mounting provisions.
Cabinet Depth
Project-specific
Confirmed around face draw, LED throw, transmission, structure, retention, and service access.
LED System
3500K-6500K static white or RGBW
Module spacing, power, controls, dimming, and service access are engineered for consistent output.
Mounting
Wall, monument, pylon, or engineered structure
Selected around cabinet loads, access, electrical requirements, code, and installer coordination.
Application
Interior or exterior
Exterior builds require project-specific drainage, sealing, wiring protection, retention, and finish review.
3 / Size & Depth
Face dimensions and draw depth are engineered together.
Overall face size, formed depth, corner radii, draft, material gauge, artwork distortion, cabinet depth, retention, tooling, shipping, and installation are reviewed as one system.
Critical Planning Rule
A formed face cannot be evaluated from flat artwork alone.
The final profile, material stretch, graphics, mold design,
and cabinet interface are confirmed during engineering review.
Dimensional Review
Project-specific formed-face planning
The following factors determine the final face and cabinet build.
Planning Factor
Production Review
Overall Face Size
Custom by project and confirmed from artwork, viewing distance, cabinet dimensions, site conditions, and available sheet size.
Formed Draw Depth
Selected around visual impact, material stretch, mold geometry, face stability, and retention.
Corner & Edge Radii
Must support reliable forming, material distribution, clean trimming, and secure perimeter retention.
Material Gauge
Specified around face size, draw ratio, impact requirements, wind exposure, and the selected substrate.
Artwork Distortion
Logos, borders, and graphics are reviewed for dimensional change across the formed profile.
Cabinet Depth
Matched to the formed face, LED throw, internal framing, wiring, retention, and service access.
Tooling & Mold
Mold construction, release, draft, venting, trimming, and expected production quantity are confirmed before fabrication.
Sectional Construction
May be required for oversized faces, freight limitations, building access, or field assembly.
Before Final Approval
Production dimensions are confirmed from the formed profile, tooling plan, cabinet, and site requirements.
Artwork & Profile
Flat art is translated into a formed face
Logo placement, borders, relief, draft, radii, and distortion are coordinated during engineering review.
Material & Tooling
Gauge and mold are confirmed
Substrate, draw depth, forming temperature, mold geometry, trimming, and expected quantity influence the production method.
Installation Planning
Cabinet and site conditions are coordinated
Mounting, wind exposure, freight, lifting, electrical access, and service requirements are confirmed before fabrication.
1 / Construction
How a Vacuum-Formed Face Lightbox is built.
Compare the formed-face cross section with the finished illuminated appearance, then review the primary fabrication stages and service considerations.
Formed-Face System
Vacuum-Formed Face Lightbox
A heated translucent sheet is formed over a mold to create a dimensional pan, dome, embossed profile, or custom relief, then retained to an illuminated cabinet.
Cross SectionDimensional formed-face construction
Shows the curved translucent face, perimeter retainer, fabricated cabinet, rear-panel LEDs, wiring, back, and mounting interface.
Vacuum-Formed Face

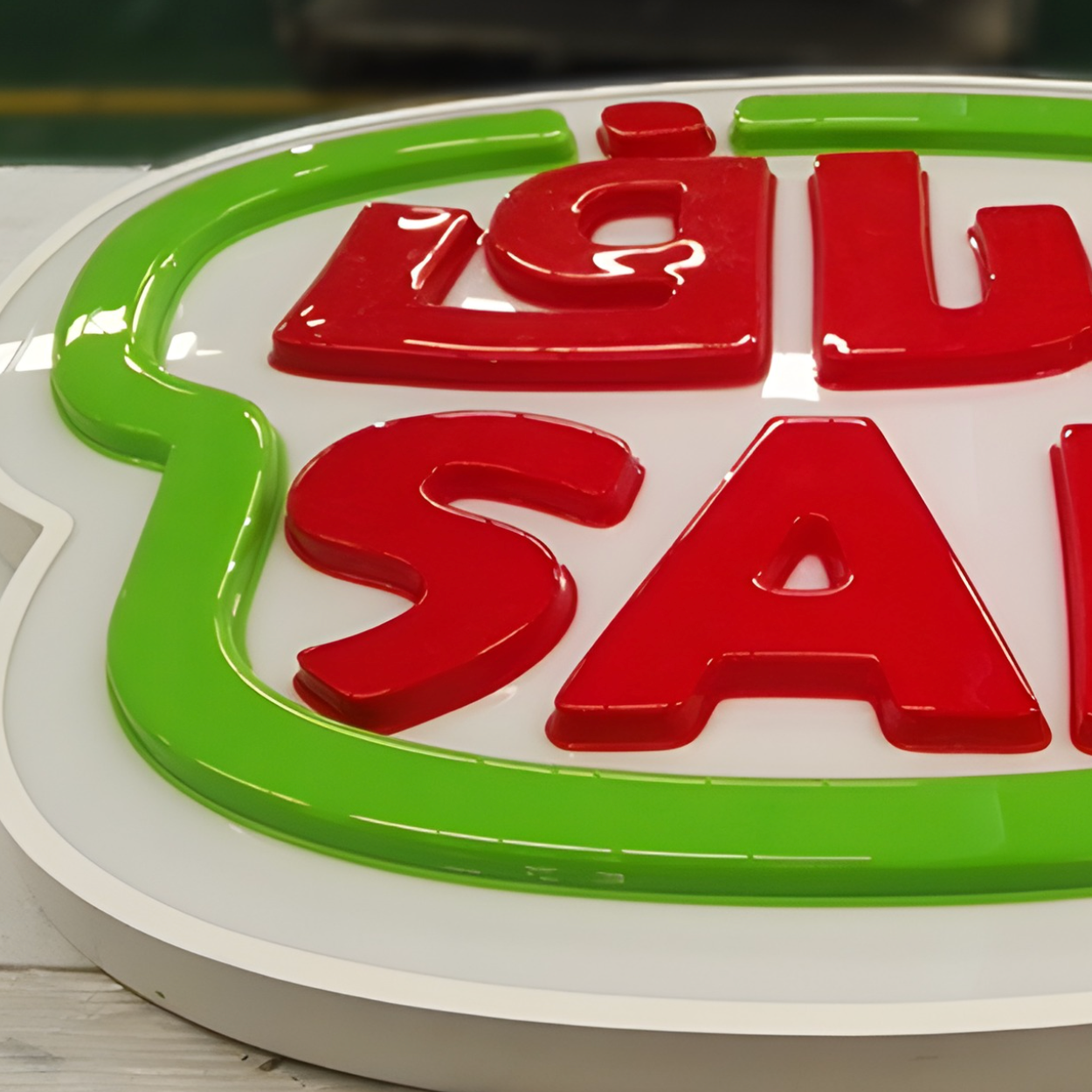

Finished EffectDimensional illuminated face
The formed translucent face projects beyond the cabinet, creating broad illumination, depth, and a distinctive architectural profile.
FaceFormed acrylic or polycarbonate
ProfilePan, dome, or custom relief
IlluminationStatic white or RGBW
Construction Details
Primary components used in a serviceable Vacuum-Formed Face Lightbox.
1
Formed FaceTranslucent acrylic or polycarbonate
The selected sheet is heated and formed over a mold to create the approved dimensional profile.
2
Graphics & ColorPigmented face, vinyl, or form-compatible printing
Brand color and graphics are coordinated with the relief, distortion, transmission, and viewing requirements.
3
Face RetentionEngineered perimeter retainer
The formed face is trimmed and secured to the cabinet with a serviceable retention system.
4
Cabinet & IlluminationFabricated aluminum with rear-panel LEDs
Cabinet depth, LED spacing, interior reflection, power, and controls are coordinated for uniform illumination.
5
InstallationProject-specific mounting system
Wall, monument, pylon, structural, electrical, drainage, and service requirements are confirmed before fabrication.
4 / Lighting
Uniform illumination across a dimensional formed face.
Choose fixed white illumination from 3500K to 6500K or an RGBW color-changing system. Face color, material, draw depth, transmission, cabinet depth, LED spacing, power, and controls are reviewed together.
Lighting Platforms
Static white or RGBW illumination
Rear-panel LEDs illuminate the formed translucent face from within the cabinet. The final platform is selected around brand color, brightness, face profile, environment, and control requirements.
Static White
3500K-6500K
Warm white through daylight white for a consistent fixed illuminated appearance.
RGBW
Full color + dedicated white
Programmable color with a dedicated white channel and compatible controls.
Face TransmissionMaterial-dependent output
Substrate, pigment, gauge, graphics, and formed depth influence brightness and color appearance.
Formed ProfileDepth affects light distribution
Dome, pan, embossed, and multi-level areas are reviewed for LED coverage and consistent illumination.
LED UniformityBalanced module coverage
Cabinet size, face profile, LED spacing, internal framing, and reflection are coordinated to reduce hotspots.
Color Temperature3500K to 6500K
Warm, neutral, cool, or daylight white is selected around the environment and approved brand presentation.
Power & ControlsLoad and access planned
Power supplies, RGBW controllers, dimming, circuit requirements, ventilation, and service access are confirmed before production.
Wiring & ServiceConfirmed before fabrication
Wire exits, remote power or controller locations, disconnects, wall penetrations, and installer notes are documented early.
5 / Materials & Finish
Materials selected around forming performance and brand standards.
Formed-face material, pigment, graphics, retention, cabinet construction, finish, environment, mounting, and lighting are coordinated as one assembly.
Formed FaceTranslucent acrylic or polycarbonate
Material, color, gauge, impact strength, weatherability, and forming characteristics are selected around the project.
Face ProfilePan, dome, embossed, or custom relief
Mold geometry, draw depth, radii, draft, and trimming establish the dimensional appearance.
GraphicsPigmented face, translucent vinyl, or form-compatible printing
Graphic method is selected around distortion, relief, color accuracy, detail, and durability.
Face RetentionEngineered perimeter retainer
Profile, finish, fastening, sealing, and service access are coordinated with the formed face and cabinet.
CabinetFabricated aluminum
Aluminum provides a lightweight, corrosion-resistant enclosure that can be reinforced for large formats.
Interior FinishReflective white coating
Improves LED reflection, distribution, brightness, and consistent illumination across the formed face.
6 / Quote Prep
Information required for an accurate quote.
Supplying the core project details upfront helps confirm face-forming feasibility, tooling, cabinet construction, pricing, lighting, mounting, production requirements, and lead time.
Best Starting Point
Send the artwork.
Vector artwork lets us review the face profile, relief, distortion, tooling, graphics, cabinet size, and production feasibility.
Initial Review Covers
1Artwork and formed-face feasibility
2Material, tooling, and lighting
3Mounting and electrical planning
ArtworkAI, EPS, SVG, or PDF
Vector files are preferred. Clean PDFs or high-resolution references can be used for initial review.
Overall SizeWidth and height
Send target dimensions, wall or structure area, viewing distance, and any brand-standard drawings.
Face ProfilePan, dome, or custom relief
Provide the desired projection, dimensional effect, examples, or profile references when available.
Face Color & GraphicsPigment, vinyl, or printing
Provide illuminated colors, logos, artwork treatment, brand standards, and physical samples when required.
LightingStatic white or RGBW
Provide color temperature, color-changing requirements, dimming, control expectations, or brand color references.
Install LocationStructure and site photos
Include wall, monument, or pylon application, interior or exterior use, access, exposure, and mounting conditions.
Electrical & Installation Planning
Confirm mounting, power, drainage, and service details before production.
Power & ControlsLocation and access
Provide power-supply or controller location, circuit requirements, access conditions, and available power.
Wire ExitsRouting and penetrations
Confirm wire exits, disconnect requirements, cable routing, wall or structure penetrations, and installer notes.
Mounting & StructureHardware and load planning
Include structural support, mounting conditions, wind exposure, access limits, and installer requirements.
