Acrylic LED Neon Signs
Rigid acrylic light profiles for a refined neon effect.
Acrylic LED Neon Signs use a durable rigid acrylic light face mounted to a fabricated 304 stainless steel base. The illuminated acrylic profile can be produced in narrow or wide strokes and customized in shape, color, and edge presentation for lettering, logos, outlines, and architectural graphics. These systems are typically hardwired and stud mounted, with final construction selected after artwork and site review.
Face System
Rigid acrylic light profile
Base
304 stainless steel
Support
Quote to production
Production Focus
Designed for clean acrylic shaping, consistent stroke geometry,
controlled illumination, concealed hardwiring,
and installer-ready stud-mount documentation.
Built for
project partners
Signage Companies
Design Firms
Franchise Owners
Corporate Accounts
A shaped acrylic tube or profile projects from a slim metal base, creating a crisp illuminated line with more physical structure than flexible neon. Stroke width, acrylic color, LED color, and edge treatment are coordinated by project.
Artwork feasibility, narrow or wide stroke, acrylic profile and color, corner geometry, base depth, LED color, hardwire location, power-supply access, stud layout, wall construction, environment, shipping, and installation requirements.
Technical Specifications
Fabrication data for Acrylic LED Neon Signs.
Review rigid acrylic face construction, stroke geometry, 304 stainless steel bases, hardwired electrical planning, stud mounting, finishes, and quote requirements.
Final specificationConfirmed after artwork and site review
StyleRigid acrylic LED neon
FaceCustom width, shape, and color
Base304 stainless steel
PowerHardwired
MountingStud mounted; project-specific
1 / Construction
Rigid acrylic light face on a fabricated stainless steel base.
The system combines a custom-shaped acrylic tube or light profile, internal LEDs, a fabricated 304 stainless steel base, concealed hardwiring, and project-specific stud attachment.
Primary System
Rigid Acrylic LED Neon
Engineers select the acrylic width, cross-sectional shape, color, LED platform, base depth, wire path, stud pattern, and service method after reviewing the artwork and installation conditions.
Cross SectionRigid acrylic profile + stainless base + concealed wiring
The drawing shows the acrylic light face, internal LED area, stainless steel base, hardwire exit, and wall attachment. Dimensions A, T1, and T2 are finalized around overall size, acrylic projection, base depth, wall offset, and mounting conditions.

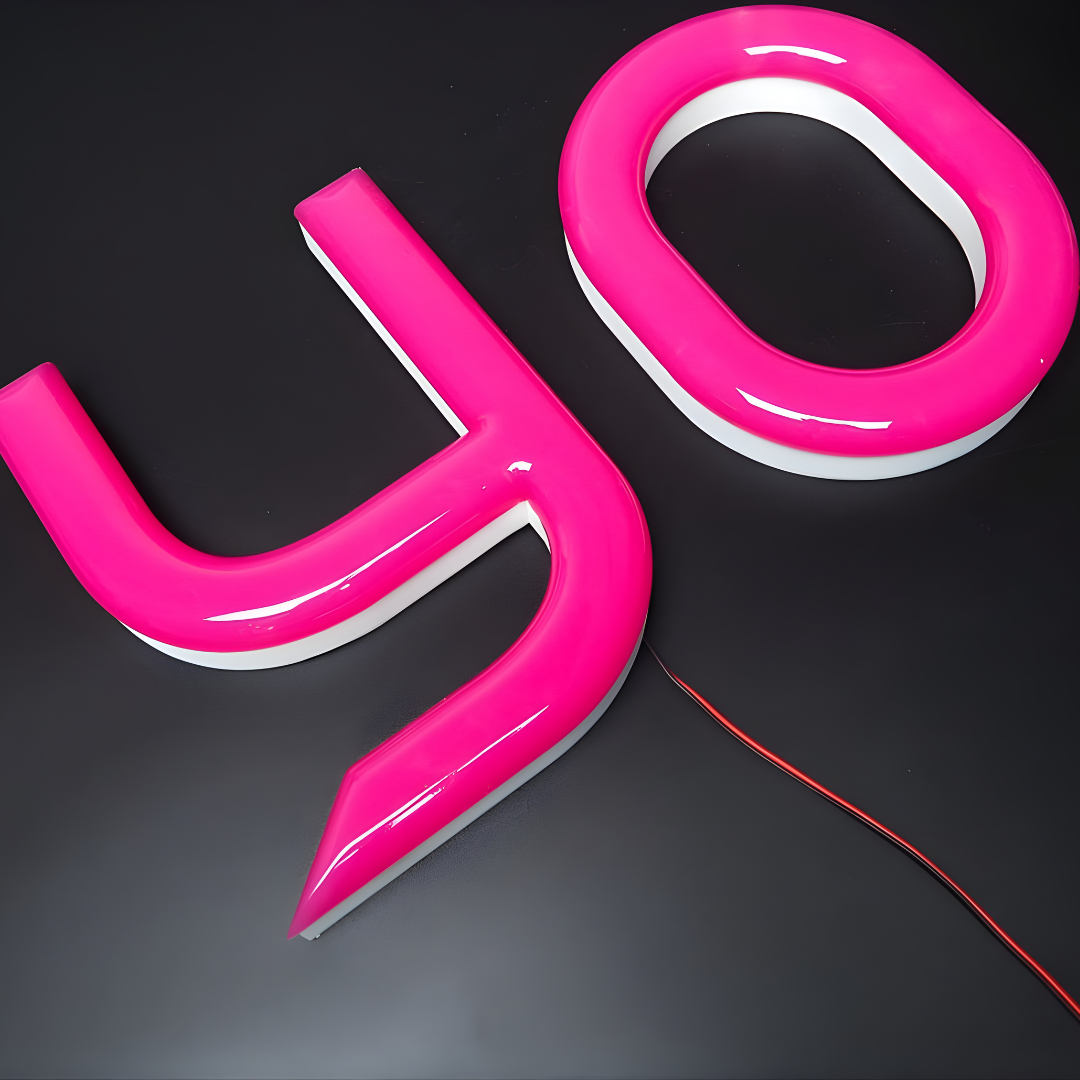

Finished EffectStructured neon-style illumination with a rigid acrylic face
The illuminated profile follows the artwork as a defined narrow or wide stroke, producing a crisp front glow and visible dimensional edge.
FaceRigid custom acrylic profile
Base304 stainless steel
ConnectionHardwired electrical system
Construction Details
Primary stages coordinated for a durable commercial acrylic-neon system.
1
Artwork EngineeringStroke, corners, counters, and section paths reviewed
Artwork is checked for acrylic width, internal openings, corner radii, return geometry, segment transitions, wire routes, stud locations, and readable proportion.
2
Acrylic Face FabricationCustom rigid profile in approved width and color
The acrylic is formed, machined, bonded, polished, diffused, colored, or finished according to the approved cross section and illuminated appearance.
3
Stainless Base Fabrication304 stainless steel channel and support structure
The base is cut, formed, welded, reinforced, finished, drilled, and prepared for LEDs, wiring, service access, and stud attachment.
4
LED & Electrical AssemblyLow-voltage illumination with hardwired field connection
LED placement, power loading, wire gauge, power supplies, feed points, heat management, grounding, markings, and service access are coordinated before final assembly.
5
Mounting PreparationStud pattern, spacer depth, and installation documentation
Threaded studs, drilling patterns, wall penetrations, wire exits, spacer requirements, anchors, packaging, and installer instructions are finalized before shipment.
2 / Core Specs
Primary production specifications.
Final construction depends on artwork geometry, acrylic width and profile, color, base depth, LED system, sign size, mounting, wall conditions, environment, and electrical requirements.
Specification
Planning Standard
Production Notes
Product Style
Acrylic LED Neon Sign
A rigid illuminated acrylic face mounted to a fabricated metal base for a durable neon-style appearance.
Acrylic Face
Sign-grade rigid acrylic / PMMA profile
Face width, height, cross section, diffusion, color, finish, joints, impact requirements, and environment are selected by project.
Stroke Width
Narrow or wide; artwork-specific
Final width depends on logo scale, corner geometry, internal counters, face strength, LED spacing, base construction, and desired daytime appearance.
Face Color
Clear, white, pigmented, painted, printed, or project-specific
Acrylic color, LED color, diffusion, edge treatment, and unlit appearance are coordinated together.
Base Material
304 stainless steel
Base thickness, depth, welds, access, finish, reinforcement, stud pattern, and corrosion protection are selected around size and environment.
LED System
Low-voltage static white or color; dynamic options by project
LED type, color temperature, output, spacing, voltage, power loading, controls, thermal conditions, and accessibility are engineered for the approved acrylic profile.
Power Connection
Hardwired
Power supplies, field wiring, wall penetrations, disconnecting means, access, and final connection are coordinated with the installer and applicable requirements.
Mounting
Stud mounted; project-specific alternatives reviewed
Stud count, diameter, spacing, projection, wall anchors, spacers, templates, wire clearance, and wall construction determine the final method.
Application
Interior or exterior by approved construction
Exterior use requires compatible acrylic, sealed LED and wiring details, drainage, corrosion review, rated power equipment, and site-specific installation planning.
Electrical Coordination
Listed-sign and component requirements confirmed by project
Components, power supplies, wiring, grounding, markings, disconnects, instructions, and field installation are coordinated to applicable UL 48, UL 879, and NEC Article 600 requirements.
3 / Size & Stroke
Acrylic width, profile depth, and artwork geometry are engineered together.
There is no universal stroke size. Narrow and wide acrylic profiles require different radii, LED layouts, base depths, joints, mounting support, and shipping plans.
Critical Planning Rule
Final acrylic width, minimum radius, internal openings, segment lengths, base depth, and stud pattern must be checked against the exact artwork and selected construction.
Narrow StrokeRefined linework and compact profiles
Minimum width depends on acrylic wall thickness, machining, joints, LED package, diffusion, corner radius, and overall size.
Wide StrokeHigher visual weight and broader illumination
Wider faces may require deeper bases, additional LEDs, internal support, multiple feeds, larger radii, or sectional fabrication.
Corner GeometryRadius and profile continuity reviewed
Sharp turns may require softened radii, machined transitions, bonded sections, alternate face geometry, or artwork adjustment.
Counters & OpeningsInternal shapes checked for clearance
Small counters can conflict with acrylic width, base returns, LEDs, studs, wiring, and service access.
Acrylic ProjectionT1 finalized by profile selection
The front projection depends on face width, cross section, edge treatment, diffusion, impact requirements, and desired dimensional appearance.
Base DepthT2 finalized by lighting and structure
Base depth depends on LED spacing, wire routing, power feeds, reinforcement, service access, face attachment, and wall offset.
Overall HeightA confirmed from artwork and site
Overall size is coordinated with viewing distance, wall area, stroke proportion, structural loads, mounting access, and local restrictions.
Section JointsLarge signs may require multiple sections
Acrylic seams, metal-base joints, wiring zones, alignment keys, shipping limits, and field assembly are planned before production.
Stud LayoutLoad and wall conditions determine spacing
Stud locations are coordinated around sign weight, base rigidity, wire exits, wall backing, templates, and installation access.
Freight & HandlingAcrylic edges and finished bases protected
Packaging, sectional construction, lifting points, finish protection, delivery access, and installation sequence are confirmed before shipment.
4 / Lighting & Electrical
Hardwired illumination engineered around the acrylic profile and metal base.
The LED platform, acrylic transmission, base depth, run length, power supply, wiring, switching, dimming, service access, and installation environment are matched to the approved sign.
Electrical Platform
Low-voltage LED system with hardwired field connection
Power equipment is located remotely or within an approved accessible location. Final branch-circuit connection and field wiring are completed by the appropriate qualified installer.
Static IlluminationWhite or single-color output
Static systems provide consistent illumination and may support compatible wall-switch or low-voltage dimming controls when specified.
Dynamic IlluminationRGB, RGBW, or tunable white by project
Dynamic systems require compatible LEDs, controllers, channel count, wiring, programming, and accessible control equipment.
Face TransmissionAcrylic- and color-dependent
Material color, diffusion, face width, wall thickness, LED distance, edge finish, and ambient light influence brightness and uniformity.
LED LayoutMatched to narrow or wide profiles
Module or strip placement, spacing, orientation, feed points, bends, and internal reflections are engineered to reduce dark areas.
Power SuppliesLoad-matched and accessible
Quantity, capacity, location, ventilation, enclosure, circuit loading, environmental rating, and replacement access are confirmed.
Voltage DropWire gauge and feed points calculated
Long runs or remote power locations may require larger conductors, multiple feeds, divided circuits, or distributed power supplies.
Hardwire ExitRear exit coordinated with wall penetration
Wire position, connector access, strain relief, stud clearance, sealant, wall chase, polarity, and installer termination are documented.
Switching & DimmingProject-specific control
Wall switching, compatible dimming, timers, relays, building controls, or dynamic controllers are coordinated with the power system.
Thermal ManagementBase depth and LED loading reviewed
LED density, metal temperature, power supplies, enclosed spaces, ventilation, exterior heat, and continuous operating conditions are considered.
Service PlanningReplaceable electrical components
Power supplies and controllers are located where they can be inspected or replaced without damaging the acrylic face or finished wall.
5 / Materials & Mounting
Materials selected around optical performance, rigidity, finish, and installation.
The acrylic face, stainless base, LEDs, studs, spacers, wiring, finishes, wall anchors, and electrical equipment are coordinated as one complete sign system.
Sign-Grade AcrylicRigid illuminated face material
Optical clarity, diffusion, color, thickness, impact performance, fabrication method, weatherability, and edge finish are selected around the project.
Acrylic Profile OptionsNarrow, wide, rounded, squared, or custom
Cross-sectional geometry is selected around artwork, stroke appearance, LED layout, corner transitions, daytime presentation, and durability.
304 Stainless Steel BaseFabricated structural and electrical housing
Base depth, thickness, reinforcement, welds, access panels, studs, drainage, wire entries, and finish are project-specific.
Stainless FinishBrushed, polished, painted, powder coated, or premium treatment
Finish direction, gloss, texture, color matching, protective handling, exterior compatibility, and maintenance are reviewed before production.
Stud MountingThreaded studs through the wall surface
Stud diameter, length, spacing, template, anchors, backing, adhesive or mechanical retention, wire clearance, and wall access are coordinated.
Spacers & Wall OffsetFlush or projected by project
Spacer depth is selected around base geometry, wiring, wall irregularities, drainage, cleaning access, and the intended shadow line.
Wall CompatibilityMasonry, concrete, wood, steel, or framed wall
Substrate, cladding, backing, concealed utilities, attachment access, waterproofing, and engineering requirements determine the installation details.
Exterior ConstructionSpecifically engineered when required
Exterior use requires suitable acrylic, sealed electrical details, corrosion-compatible hardware, drainage, UV and temperature review, rated power equipment, and approved wall penetrations.
6 / Quote Prep
Information required for an accurate quote.
Supplying complete artwork, size, color, mounting, wall, power, and environment information helps confirm feasibility, engineering, pricing, production requirements, freight, and lead time.
Best Starting Point
Send the vector artwork and site photos.
Artwork and wall information let us review acrylic width, corner geometry, base depth, LED layout, hardwire exit, stud pattern, power location, environment, and installation access.
Start a QuoteArtworkAI, EPS, SVG, or vector PDF
Provide outlined fonts, exact logo paths, desired illuminated strokes, and any separate color zones.
Overall SizeWidth, height, and wall area
Provide target dimensions, viewing distance, available wall area, access limits, and shipping restrictions.
Acrylic StrokeNarrow, wide, or preferred reference
Provide the desired line weight, acrylic color, edge appearance, and daytime reference image when available.
Light ColorWhite, static color, or dynamic system
Provide desired color temperature, illuminated color, dimming or control needs, and brand references.
Base FinishBrushed, polished, painted, or powder coated
Provide Pantone/PMS, Sherwin-Williams, metal finish, gloss, texture, and architectural references.
MountingStud mounted or project-specific alternative
Provide wall material, backing information, desired offset, site photos, concealed conditions, and installer requirements.
Power & HardwiringCircuit, power supply, and wire location
Provide available power, wall-penetration location, distance to accessible power equipment, switching, dimming, and electrician requirements.
EnvironmentInterior or exterior
Confirm moisture, direct sun, heat, cleaning, public contact, impact risk, elevation, permit, and code requirements.
Wall & StructureSubstrate, backing, studs, and anchors
Provide wall assembly information, attachment access, cladding, concealed conditions, structural drawings, or engineer requirements.
Electrical CoordinationHardwire, power supplies, controls, and service
Confirm circuit location, power-equipment access, cable path, wall penetrations, disconnecting means, and installer responsibilities.
Access & FreightDelivery and installation constraints
Provide lift access, doorway or elevator limits, sectional needs, packaging requirements, installation sequence, and site scheduling constraints.
