Hospitality interiors, restaurants, bars, retail feature walls, entertainment venues, window displays, historic branding, and projects where authentic glass-neon character is important.

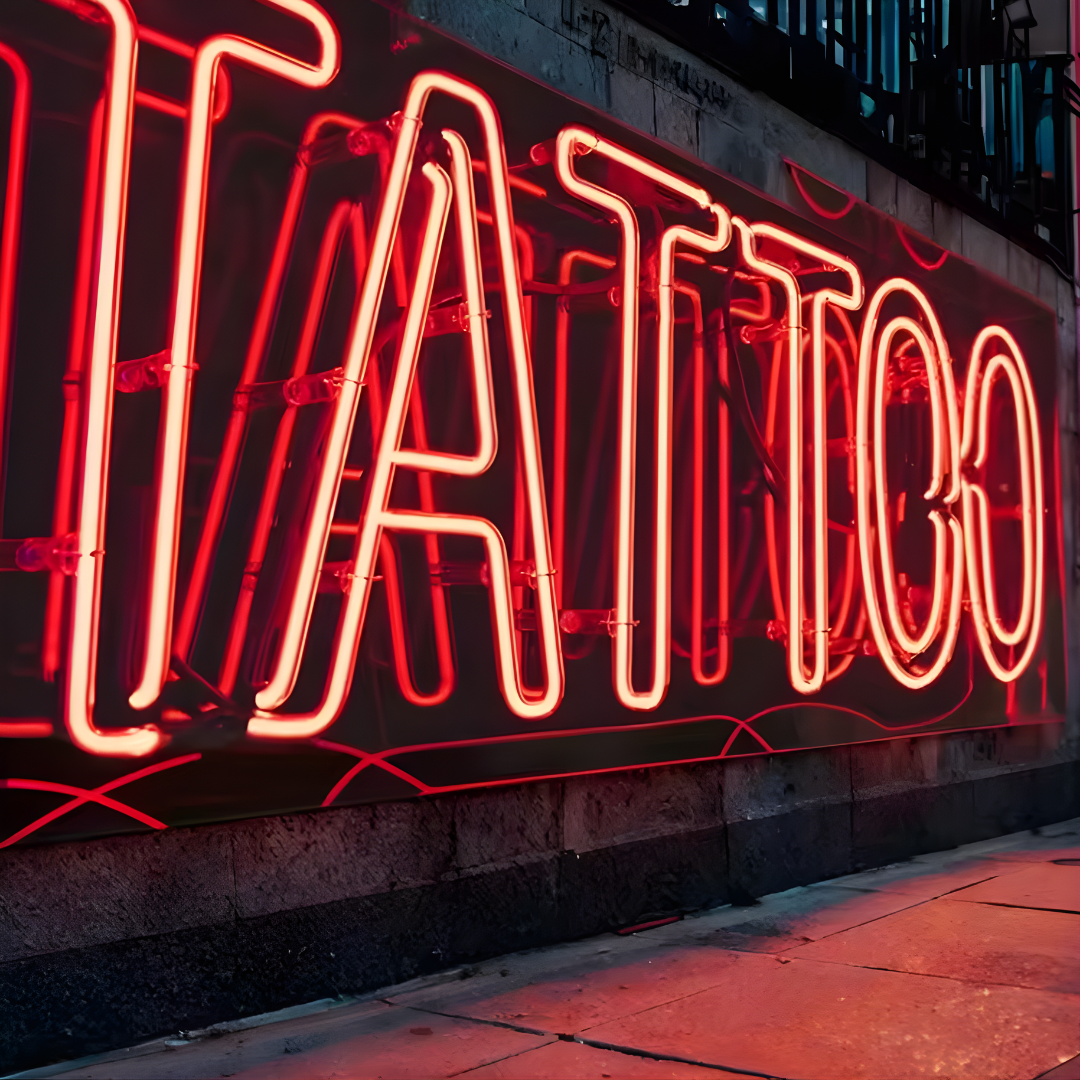

Glass Neon Signs
Hand-formed glass tubing for authentic neon illumination.
Glass Neon Signs use heated glass tubing that is hand bent to the approved lettering, logo, or outline. Electrodes, processed gas, tube supports, wiring, and a matched transformer create the unmistakable color and character of traditional neon. Mounting and electrical construction are selected around the artwork, environment, and service requirements.
Light Source
Hand-formed glass tubing
Power
Hardwired transformer system
Application
Interior standard; exterior by project
Production Focus
Designed for buildable tube paths, clean bends, balanced color, concealed wiring, secure supports, and serviceable transformer placement.
Built for
project partners
Signage Companies
Design Firms
Franchise Owners
Corporate Accounts
The visible light comes directly from formed glass tubing, producing saturated color, crisp linework, and the distinctive dimensional quality associated with traditional neon.
Tube diameter, bend radius, color, electrode placement, transformer location, mounting panel, wire paths, environment, access, and installation requirements.
Technical Specifications
Fabrication data for Glass Neon Signs.
Review glass tubing, color systems, electrodes, transformers, mounting, service access, and quote requirements.
Final specificationConfirmed after artwork and electrical review
StyleTraditional glass neon
Light SourceHand-formed tubing
PowerHardwired transformer
MountingPanel, raceway, or direct
ApplicationInterior standard; exterior by project
01 / Construction
Construction
Traditional neon is engineered as a complete glass, electrode, support, wiring, transformer, and mounting system.
Glass TubingHand bent to approved artwork
Tubing is heated and formed by a skilled glassworker. Diameter, radius, bridges, returns, and segment breaks are artwork-specific.
Electrodes & ProcessingMatched to the tube and gas system
Electrodes are sealed to the tubing, the assembly is evacuated and processed, and the selected gas or phosphor system establishes the final color.
Tube SupportsClear or dark supports by project
Supports maintain spacing from the mounting surface and protect the glass from movement, contact, and uneven loading.
Transformer & WiringHardwired high-voltage neon system
Transformer rating, secondary wiring, electrode enclosures, disconnecting means, grounding, and service access are coordinated before fabrication.
02 / Core
Core Specs
Final construction depends on artwork geometry, tube diameter, color system, mounting, transformer location, environment, and code requirements.
Specification
Planning Standard
Production Notes
Light Source
Traditional formed glass neon
The illuminated line is the processed glass tube itself, not a flexible LED substitute.
Color
Gas and phosphor dependent
Color may come from the fill gas, phosphor coating, colored glass, or a coordinated combination.
Power
Hardwired transformer system
The matched transformer and field connection must remain accessible and properly coordinated with the sign design.
Mounting
Acrylic panel, metal panel, raceway, or direct supports
The mounting system is selected around appearance, protection, wiring concealment, wall conditions, and service.
Environment
Interior standard; exterior by engineered construction
Exterior work requires suitable housings, weather protection, drainage, corrosion review, and approved electrical details.
Compliance
Project-specific listed sign requirements
Electric-sign construction and installation are coordinated with applicable UL 48, UL 879, and NEC Article 600 requirements.
03 / Size
Size & Geometry
Tube paths must remain physically bendable, supportable, serviceable, and visually consistent.
Tube DiameterSelected around artwork and scale
Diameter influences brightness, minimum radius, line weight, transformer loading, and visual proportion.
Minimum RadiusGlass- and diameter-specific
Tight corners may require softened artwork, segmented tubes, bridges, or alternate routing.
Segment LengthLimited by handling and electrical design
Large signs may require several tube sections with planned electrodes, wiring transitions, and alignment.
Counters & CrossoversReviewed for clearance
Small openings and overlapping paths can require artwork adjustments or separate mounting planes.
Mounting OffsetProject-specific support height
Spacing from the panel or wall is coordinated with tube supports, wiring, protection, cleaning, and visual depth.
Shipping & ServiceFragile sections planned in advance
Crating, removable sections, replacement access, labeling, and field assembly are considered before production.
04 / Lighting
Lighting & Electrical
Traditional neon uses a matched high-voltage transformer system and must be installed as an electric sign.
Electrical PlatformHardwired neon transformer system
Transformer capacity, primary power, secondary conductor routing, electrode enclosures, disconnecting means, grounding, and service access are selected for the approved tubing layout.
Static ColorGas / phosphor color system
Color is established by the approved glass and fill system rather than an RGB controller.
ControlsSwitching, timer, or approved dimming
Control method depends on transformer compatibility, installation requirements, and desired operation.
Transformer LocationAccessible and ventilated
Remote or integrated placement is coordinated around wire distance, enclosure, heat, service, and appearance.
Secondary WiringProtected high-voltage routing
Conductor type, spacing, pass-throughs, electrode connections, and concealment are documented.
Field ConnectionQualified installer required
Final branch-circuit and sign connection must be completed according to applicable electrical requirements.
Service PlanningTubes and transformer remain replaceable
Access is planned so damaged tubing or electrical components can be serviced without destroying the finished wall.
05 / Materials
Materials & Mounting
Glass color, supports, mounting panel, metalwork, finishes, and electrical components are coordinated together.
Neon GlassClear, phosphor-coated, or colored tubing
Tube family and diameter are selected around color, brightness, geometry, and availability.
Mounting PanelClear acrylic, colored acrylic, or metal
Panel shape, thickness, finish, holes, and edge treatment are project-specific.
Direct MountingTube supports on wall or structure
Requires suitable backing, accurate layout, protected wiring, and installer access.
Raceway / CabinetConcealed transformer and wiring option
Fabricated housings can simplify mounting and service while adding visual depth.
Interior FinishPaint, print, vinyl, or architectural metal
Background finish is chosen around contrast, reflection, brand standards, and maintenance.
Exterior ProtectionSpecifically engineered
Weather exposure requires approved enclosures, sealing, drainage, corrosion-compatible hardware, and location-rated components.
06 / Quote
Quote Prep
Send the artwork, target size, installation details, and desired lighting or finish so the final construction can be engineered accurately.
Best Starting Point
Send the vector artwork.
Artwork and site information let us confirm geometry, construction, electrical requirements, mounting, pricing, freight, and lead time.
Start a QuoteArtworkAI, EPS, SVG, or vector PDF
Provide the exact tube path, wording, logo, and desired line weight.
SizeOverall width and height
Provide wall area, viewing distance, and access limitations.
ColorReference color or neon sample
Color selection is matched to available gas, phosphor, and glass systems.
MountingPanel, raceway, or direct
Provide wall material, preferred background, and wiring-concealment requirements.
PowerCircuit and transformer location
Identify available power, switching, access, and distance to the sign.
EnvironmentInterior or exterior
Confirm moisture, weather, public access, heat, permit, and code conditions.
