Halo-lit Channel Letters
Premium halo-lit letters for trade signage and branded environments.
Halo-lit Channel Letters are built with a visible illuminated edge and soft rear glow, creating a refined architectural finish for storefronts, lobbies, corporate spaces, franchise locations, and premium commercial projects.
Lighting Style
Edge-lit + back-lit
Project Type
Commercial signage
Support
Quote to production
Production Focus
Designed for clean approvals, accurate quoting,
and partner-ready fabrication files.
Built for
project partners
Signage Companies
Design Firms
Franchise Owners
Corporate Accounts
A refined illuminated edge paired with rear backlighting, giving each letter or logo element a high-end dimensional glow.
Artwork feasibility, sizing, material, depth, finish, LED color, mounting method, wiring exits, shipping needs, and production requirements.
Technical Specifications
Fabrication data for Halo-lit Channel Letters.
Review dimensional guidance, construction details, illumination, materials, mounting considerations, and quote requirements.
Final specification
Confirmed after artwork review
Illumination
Edge-lit + back-lit
Face & Returns
Aluminum or stainless steel
Diffusion
Acrylic or polycarbonate
Depth Basis
Matched to stroke width
Application
Interior or exterior
02 / Core Specs
Primary production specifications.
Final values depend on the approved artwork, finished size, stroke width, lighting requirements, mounting surface, and installation conditions.
Specification
Planning Standard
Production Notes
Letter Style
Halo-lit Channel Letters
Visible illuminated edge combined with soft rear backlighting.
Letter Height
Custom by project
Determined by artwork, viewing distance, wall area, and brand standards.
Letter Depth
Matched to stroke width
Must accommodate LEDs, diffusion material, structure, and wiring.
Stroke Width
Reviewed before approval
Thin strokes may require shallower construction or artwork adjustment.
Face & Returns
Aluminum or stainless steel
Selected according to size, finish, environment, and structural requirements.
Diffusion Material
Acrylic or polycarbonate
Controls the illuminated edge and rear-lighting performance.
LED System
White, color, or RGB
Output and color are selected around the required visual effect.
Mounting
Generally flush mounted
Flush-mount hardware and concealed wiring are planned around wall type, letter size, access, and installer requirements.
03 / Size & Depth
Depth-to-stroke planning guide.
Halo-lit letters require enough stroke width to accommodate return depth, LEDs, diffusion material, wiring, structure, and mounting hardware.
Critical Planning Rule
Deeper letters require thicker strokes.
Thin strokes may require shallower construction, artwork adjustment, or an alternate fabrication method.
Final depth is confirmed after reviewing artwork,
letter size, LED layout, and mounting requirements.
Letter Depth
Stroke Width
Planning Reference
1-1/4" to 2"
3/8" to 3/4"
Smaller interior letters, detailed logos, and shallow-profile builds.
1.57" to 3.15"
3/4" to 2.36"
Commercial letters, lobby signage, and storefront branding.
2.36" to 4"
2.36" to 3.15"
Larger exterior letters and deeper illuminated profiles.
3.15" to 5.9"
3.15" to 4.7"
Large-format signage and oversized brand elements.
Letter Height
Custom by project
Provide overall width, target letter height, wall dimensions, or brand-standard drawings.
Viewing Distance
Affects overall sizing
Greater viewing distances generally require taller letters and heavier visual strokes.
Oversized Elements
Reviewed before fabrication
Large letters may require sectional construction, reinforcement, or specialized shipping.
01 / Construction
How the Halo-lit system is built.
Compare the side-profile construction with the finished illuminated appearance, followed by the key fabrication stages.
Technical View
Side-profile construction
The letter assembly is generally mounted flush to the wall, with wiring and fastening hardware concealed behind or within the letter.
Edge-lit + back-lit

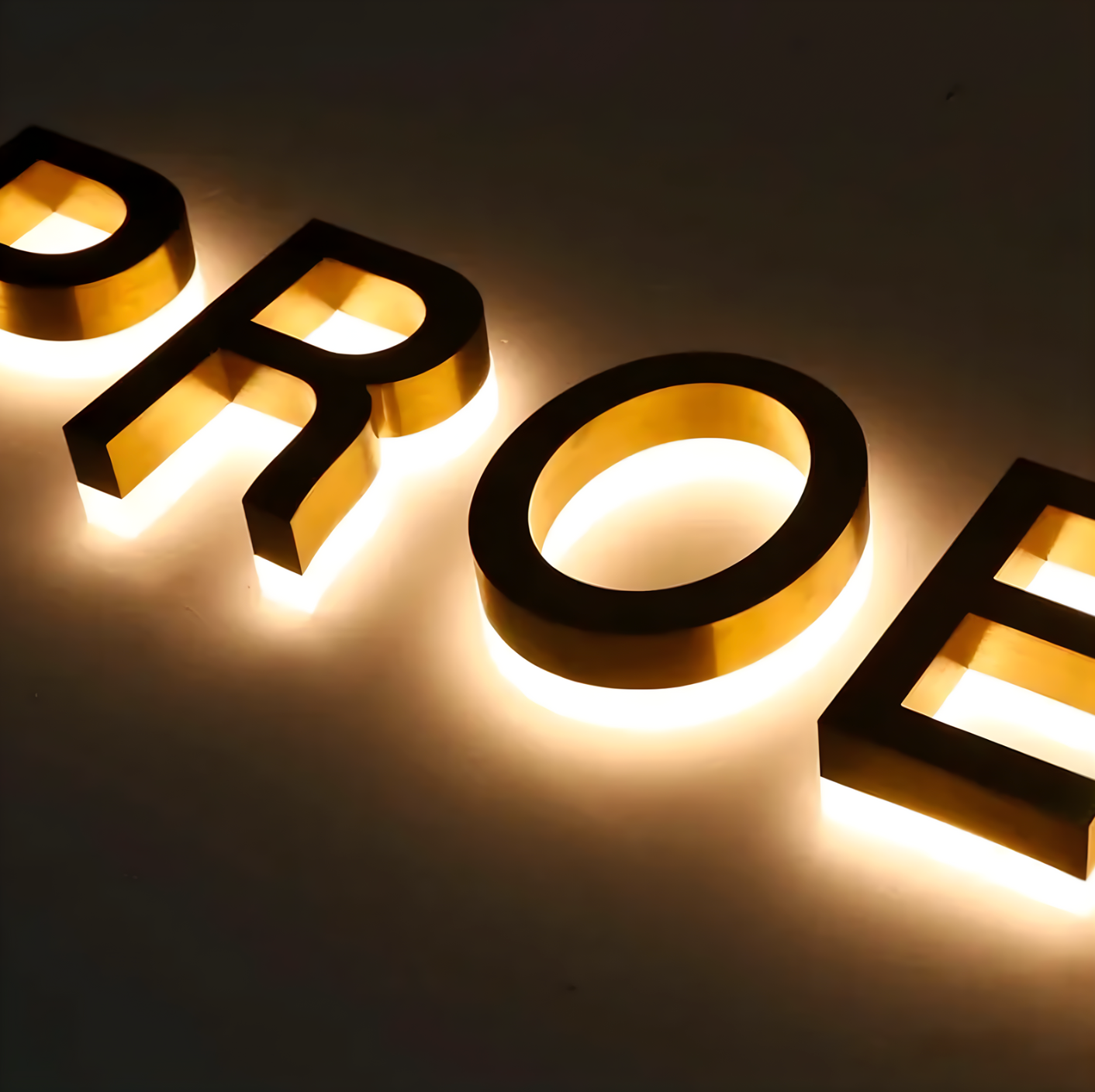

Finished Effect
Visible edge with rear glow
The metal face remains visually dominant while the illuminated edge and rear halo add depth to the finished letter.
Front
Metal face and returns
Edge
Illuminated diffusion detail
Rear
Backlighting and flush wall interface
01
Structure
Metal face and returns
Fabricated from aluminum or stainless steel and finished to the approved color or metal finish.
02
Edge System
Illuminated diffusion detail
The edge effect is planned around stroke width, depth, diffusion material, and LED spacing.
03
Rear Lighting
Controlled backlighting
LED placement creates controlled rear illumination through the back and diffusion assembly at the wall interface.
04
Interior
Reflective internal finish
A reflective interior coating improves brightness, distribution, and consistency.
05
Installation
Flush mounting and service access
Flush-mount hardware, wire exits, wall construction, transformer access, and service requirements are confirmed.
04 / Lighting
Edge illumination with controlled rear glow.
LED placement, diffusion, wall interface, power access, wire routing, and service access are reviewed before fabrication.
Lighting Configuration
Edge-lit + back-lit illumination
A visible illuminated edge is combined with soft rear backlighting.
LED Color
White, color, or RGB
Warm white, neutral white, cool white, RGB, and custom options are available.
Power Supply
Location and access
Load, transformer location, accessibility, and service requirements are reviewed.
Wire Exits
Confirmed before fabrication
Pass-through points, cable routing, and installer notes are confirmed early.
Wall Interface
Generally flush mounted
Wall flatness, finish, and surface conditions affect fit, light control, and the consistency of the rear-lighting effect.
05 / Materials & Finish
Materials selected around illumination, durability, and brand standards.
Metal selection, diffusion material, finish, environment, mounting, and lighting are coordinated as one complete system.
Face & Returns
Aluminum or 304 stainless steel
Selected around letter size, structural requirements, weight, environment, finish, and fabrication method.
Diffusion Material
Acrylic or polycarbonate
Controls the visible illuminated edge, rear-light distribution, brightness, and finished lighting consistency.
Paint Finish
PMS or custom color
Brand colors, paint references, and project-specific standards are reviewed and confirmed before fabrication.
Metal Finish
Brushed, polished, painted, or custom
Finish availability depends on the selected metal, letter geometry, scale, environment, and fabrication method.
Interior Finish
Reflective white coating
Improves internal LED reflection, brightness, distribution, and consistency across the illuminated edge.
Environment
Interior or exterior
Exterior applications are reviewed for sealing, durability, drainage, wiring protection, and mounting conditions.
06 / Quote Prep
Information required for an accurate quote.
Supplying the core project details upfront helps confirm feasibility, pricing, production requirements, and lead time.
Best Starting Point
Send the artwork.
Vector artwork lets us review stroke width, depth, illumination, LED placement, and feasibility.
Initial Review Covers
01
Artwork feasibility
02
Lighting and depth
03
Mounting requirements
Artwork
AI, EPS, SVG, or PDF
Vector files are preferred. Clean PDFs or high-resolution references can be used.
Size
Width or letter height
Send overall width, target letter height, wall area, or brand-standard drawings.
Finish
Color or material reference
Provide a PMS color, paint reference, metal finish, or brand standard.
Install Location
Wall type and site photos
Include interior or exterior use, wall material, access conditions, and site photos.
Electrical & Installation Planning
Confirm installation details before production.
Power Supply
Location and access
Provide transformer location, access conditions, and available power.
Wire Exits
Routing and pass-throughs
Confirm wire exits, wall penetrations, and cable routing.
Mounting & Installer
Wall and hardware notes
Include wall construction, mounting conditions, access limits, and installer requirements.
