Trim-cap Blade Signs
Double-sided illuminated blade signs engineered for visibility in both directions.
Trim-cap Blade Signs combine two opposing translucent acrylic faces with a fabricated metal cabinet and engineered projecting-arm assembly. The standard configuration is double-sided for visibility from both directions along the façade. Single-sided construction is available upon request when only one primary viewing direction is required.
Viewing Configuration
Double-sided standard
Face System
Acrylic face + trim cap
Support
Quote to production
Production Focus
Designed for balanced illumination across both faces,
structural arm coordination, clean face serviceability,
weather-ready fabrication, and installer-ready documentation.
Built for
project partners
Signage Companies
Design Firms
Franchise Owners
Corporate Accounts
The cabinet projects perpendicular to the building and presents two opposing illuminated acrylic faces with a defined trim-cap perimeter. A single-sided version can be produced upon request.
Artwork, overall size, cabinet depth, acrylic-face graphics, frame and arm material, finish, wall structure, anchors, LED color, hardwiring, service access, and permitting inputs. Double-sided is standard; single-sided is available on request.
Technical Specifications
Fabrication data for Trim-cap Blade Signs.
Review the standard double-sided Trim-cap Blade Sign construction, dimensional planning, face illumination, projecting-arm structure, materials, service access, and quote requirements. Single-sided construction is available upon request.
Final specificationConfirmed after artwork and site review
StyleProjecting trim-cap cabinet
ViewingDouble-sided standard; single-sided on request
Minimum DepthApproximately 2.5"; project-specific
Frame & ArmsAluminum or 304 stainless steel
FaceTranslucent acrylic
1 / Construction
Double-sided Trim-cap Blade Sign system.
The standard presentation below shows the double-sided configuration with two opposing illuminated acrylic faces, internal LED illumination, a fabricated projecting cabinet, and an engineered wall-arm assembly. A single-sided version is available upon request.
Primary System
Double-Sided Trim-cap Blade Sign
Two opposing illuminated acrylic faces provide visibility from both directions along the façade while the projecting structure is engineered around the cabinet size, wind load, wall condition, and service access.
Cross SectionTwo opposing illuminated faces with center LED structure
The drawing shows the opposing acrylic faces, trim-cap retention, internal LED arrangement, center support structure, cabinet body, and overall depth relationship.

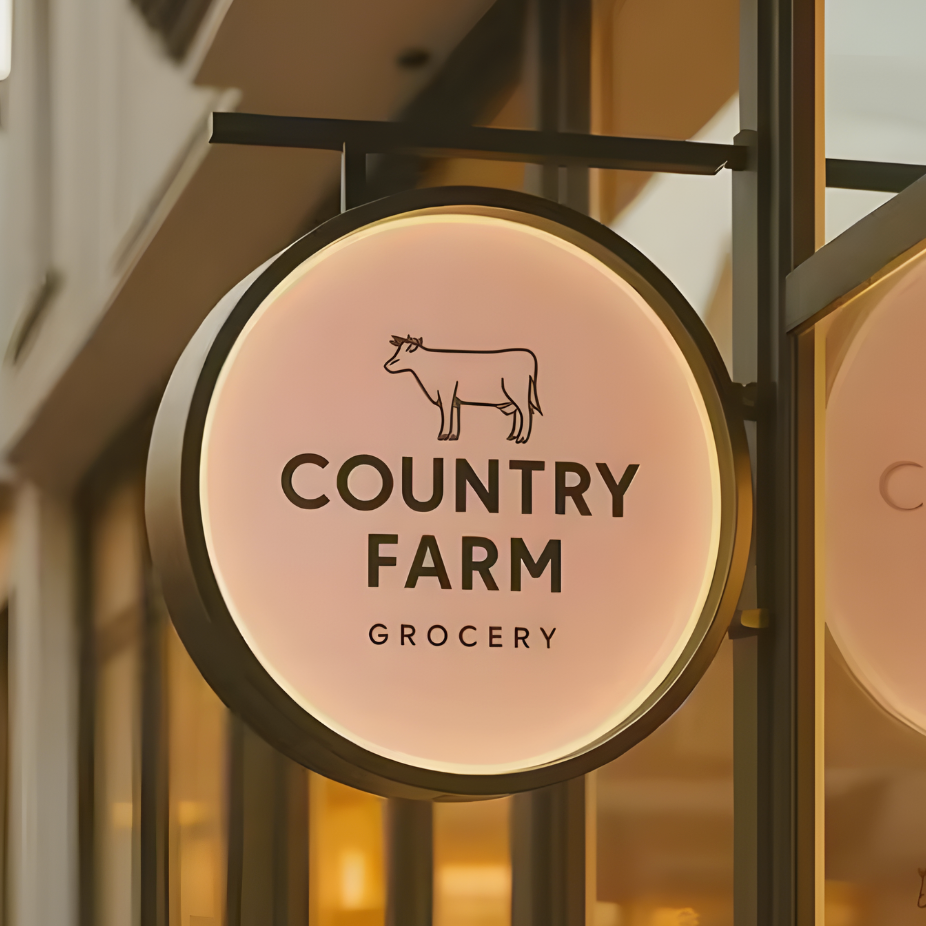

Finished EffectProjecting two-sided illuminated visibility
The finished sign presents illuminated graphics to both directions of travel. Single-sided construction remains possible upon request when a one-direction view is preferred.
ViewingTwo opposing directions
FacesTwo acrylic faces
StructureReinforced arm assembly
Construction DetailsPrimary components coordinated for a serviceable projecting illuminated sign.
1
Wall Plate & ArmsAluminum or 304 stainless steel
Plate size, arm count, reinforcement, welds, fastener pattern, and finish are engineered around the cabinet, wall condition, and projection requirements.
2
CabinetDouble-sided illuminated enclosure
The cabinet provides face retention, LED support, wiring space, reinforcement, drainage, service access, and arm attachment. Single-sided construction is available upon request.
3
Faces & GraphicsAcrylic with vinyl or UV printing
Face thickness, translucency, trim-cap profile, graphics, and day/night appearance are confirmed from approved artwork.
4
Illumination & ElectricalProject-specific LED system
LED placement, power supplies, controls, routing, labeling, and access are coordinated before fabrication for balanced double-sided output.
5
Installation PreparationAnchors, sealing, and field instructions
Mounting pattern, wall penetrations, sealant interfaces, lifting, and installer notes are finalized before shipment.
2 / Core Specs
Primary production specifications.
Final construction depends on viewing configuration, artwork, size, depth, face span, frame and arms, lighting, service access, wall construction, exposure, and installation requirements.
Specification
Planning Standard
Production Notes
Sign Style
Trim-cap Blade Sign
An internally illuminated projecting cabinet with acrylic face retention.
Viewing
Double-sided standard
Two opposing illuminated faces are standard; single-sided construction is available upon request.
Cabinet, Frame & Arms
Aluminum or 304 stainless steel
Material, wall plate, arm count, reinforcement, welds, fasteners, and finish are project-specific.
Faces
Translucent sign-grade acrylic
Thickness, color, span, trim profile, and impact requirements follow the artwork and cabinet dimensions.
Face Graphics
Translucent vinyl or UV printing
Selected around brand color, gradients, imagery, detail, day/night appearance, and durability.
Cabinet Depth
Approximately 2.5" minimum when feasible; project-specific
Depth depends on face count, LED system, face spacing, reinforcement, service access, and size.
Retention
Serviceable trim-cap perimeter
Secures the face while allowing planned access to LEDs, wiring, and internal components.
LED System
Static white standard; RGBW by project
Layout, color, controls, power supplies, thermal conditions, and access are engineered for uniform output.
Electrical
Class 2 LED system with listed-sign coordination
Components, wiring, markings, disconnects, instructions, and power access are coordinated to UL 48 and NEC Article 600 requirements.
Mounting
Engineered wall plate, arms, and anchors
Attachment depends on wall construction, backing, projection, weight, wind exposure, access, and local requirements.
Application
Interior or exterior
Exterior builds require sealing, drainage, corrosion protection, wiring protection, hardware, and finish review.
3 / Size & Depth
Depth, projection, and structural support are engineered together.
The approximately 2.5-inch minimum depth is a starting point. Final depth, size, arm structure, face span, lighting, service access, exposure, and wall attachment are reviewed as one assembly.
Critical Planning RuleThe standard build is double-sided; LED throw, face spacing, arm reinforcement, wall structure, and code limitations determine the final fabrication. Single-sided versions are available upon request.
Viewing ConfigurationDouble-sided standard
Two opposing viewing directions are standard for the presentation below; single-sided construction can be quoted on request.
Cabinet DepthApproximately 2.5" minimum when feasible
Final depth depends on face span, LED layout, face count, framing, and service access.
Overall SizeCustom by project
Artwork, viewing distance, projection limits, loads, handling, freight, and access are reviewed.
Projection from WallCode- and site-dependent
Arm length, wall plate, cabinet location, clearance, sight lines, and local restrictions are coordinated.
Face Span & ThicknessAcrylic specification by project
Trim cap, support, graphics, service method, and exposure determine the face build.
Arms & Wall PlateEngineered for cabinet loads
Arm count, spacing, plate dimensions, anchors, welds, and concealed backing are reviewed.
Wind & StructureExterior loads reviewed
Cabinet area, projection, arm moment, wall capacity, anchor loads, and jurisdictional requirements are evaluated.
Shipping & InstallationAccess and sequence confirmed
Arm removability, packaging, lifts, storefront access, field assembly, and installation order are planned.
4 / Lighting
Uniform illumination for one or two serviceable acrylic faces.
Static white is standard, with RGBW available when engineered for the depth, face spacing, controls, and required color performance.
Lighting ConfigurationDouble-sided LED cabinet illumination
LED layout is selected around cabinet depth, face span, acrylic transmission, graphics, framing, service access, and balanced brightness to both faces.
Static White3500K-6500K planning range
Coordinated with the face, graphics, environment, and brand appearance.
RGBWOptional programmable color
Available by project with compatible controls, power planning, and accessible service locations.
Balanced Face OutputUniform illumination to both sides
Reflective interior surfaces, depth, LED spacing, and the center support structure are coordinated for even face brightness.
Optional Single-Sided BuildAvailable upon request
When only one primary viewing direction is required, the cabinet can be revised to a single-faced configuration with project-specific backing and lighting.
Face TransmissionAcrylic- and graphic-dependent
Color, thickness, vinyl, printing, and trim geometry influence brightness and color.
Power SuppliesAccessible and load-matched
Quantity, location, ventilation, circuit loading, disconnects, and access are confirmed.
Wire RoutingThrough cabinet, arms, and wall plate
Passages, penetrations, strain relief, grounding, and weather protection are documented.
Exterior ServiceDrainage and weather planning
Face seals, weep paths, corrosion protection, thermal conditions, and access are reviewed.
5 / Materials & Finish
Materials selected around structure, serviceability, and brand standards.
Cabinet, arms, wall plate, faces, graphics, trim cap, finish, environment, lighting, and mounting are coordinated as one system.
Aluminum StructureLightweight and finish-flexible
Suitable for cabinets, arms, wall plates, reinforcement, powder coating, and custom-painted finishes.
304 Stainless SteelPremium corrosion-resistant metal
Suitable for cabinets, arms, wall plates, brushed or polished presentation, paint, and compatible premium finishes.
Acrylic FacesTranslucent sign-grade material
Color, thickness, diffusion, impact requirements, span, graphics, and exposure are selected by project.
Face GraphicsTranslucent vinyl or UV printing
Vinyl supports solid colors and brand matching; UV printing supports gradients, imagery, and detailed multi-color artwork.
Trim CapDefined serviceable perimeter
Profile, color, fastening, face fit, corners, and service method are coordinated with the cabinet.
Finish & Color MatchingPowder coat, paint, or compatible metal finish
Pantone/PMS, Sherwin-Williams, samples, gloss, texture, and brushed direction can be coordinated.
6 / Quote Prep
Information required for an accurate quote.
Core details help confirm configuration, structure, depth, faces, lighting, mounting, pricing, freight, and lead time.
Best Starting PointSend the artwork and site photos.
Vector artwork and clear wall information let us review face size, projection, depth, arm structure, graphics, wall plate, anchors, and service.
Start a QuoteArtworkAI, EPS, SVG, or PDF
Include both face layouts if the two sides use different graphics.
ViewingDouble-sided standard
Confirm viewing directions, orientation, and pedestrian or traffic approach.
Size & ProjectionWidth, height, depth, and wall projection
Provide target dimensions, wall area, clearances, and known restrictions.
Face GraphicsVinyl or UV printing
Provide colors, brand references, gradients, imagery, and day/night requirements.
Frame, Arms & FinishAluminum or 304 stainless steel
Provide preferred material, paint, powder coat, or brushed/polished reference.
Install LocationWall construction and site photos
Include substrate, backing, elevation, access, exposure, sign height, and available power.
Wall & StructureSubstrate, backing, and anchors
Provide attachment access, concealed conditions, drawings, or engineer requirements.
Power & WiringCircuit, disconnect, and routing
Confirm power location, penetrations, wire path, controls, and installer responsibilities.
Code, Access & FreightPermit and installation constraints
Provide projection limits, clearance requirements, lift access, delivery restrictions, and packaging needs.
