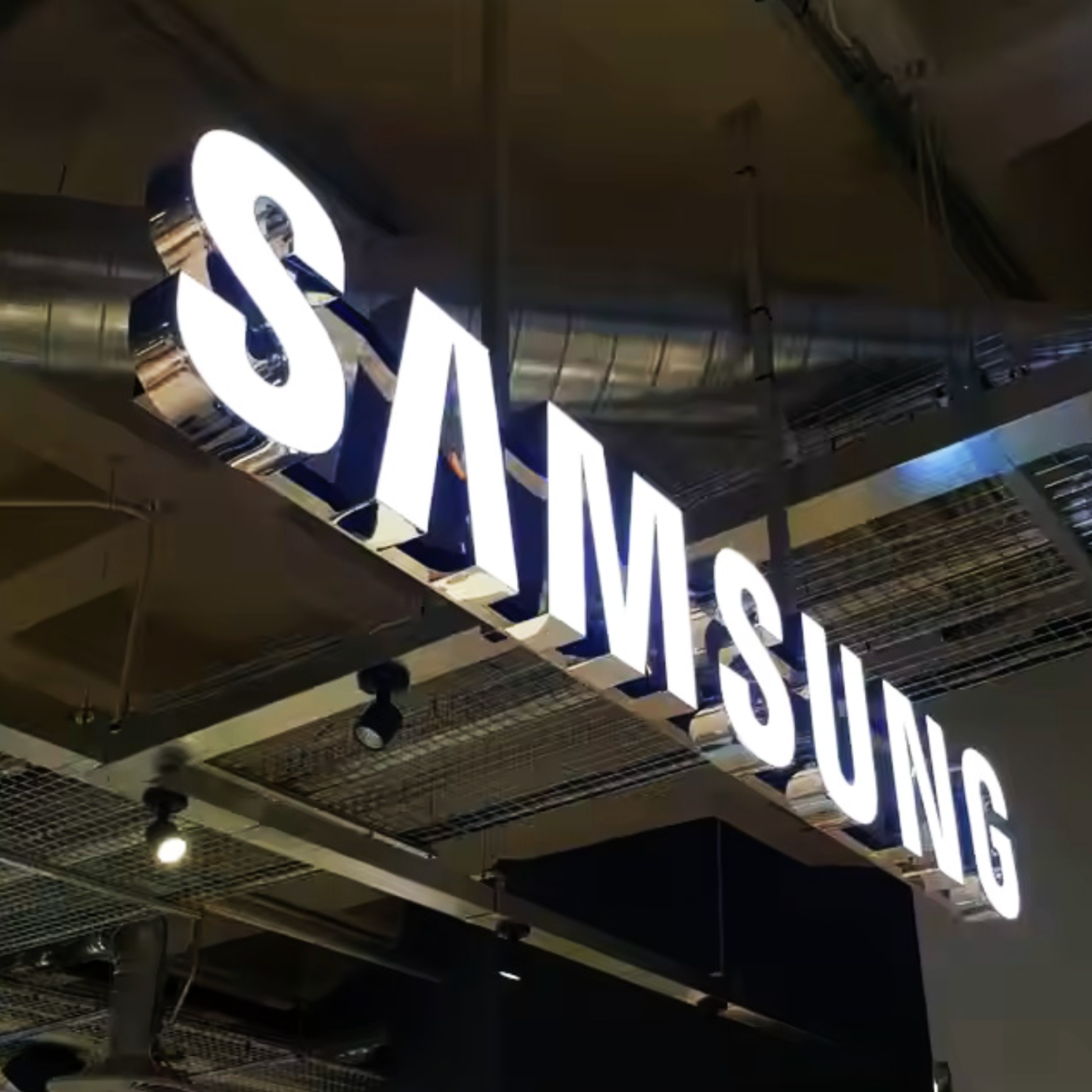

Trimless Front-lit Channel Letters
Clean, borderless front-lit letters for premium commercial signage.
Trimless Front-lit Channel Letters create a bright, uninterrupted illuminated face without a visible trim-cap border. Choose a standard translucent acrylic face or an epoxy-resin face for storefronts, interiors, franchise programs, and premium branded environments.
Lighting Style
Front-lit / face-lit
Face Options
Acrylic or epoxy resin
Support
Quote to production
Production Focus
Designed for seamless face presentation, precise brand matching,
scalable fabrication, and installer-ready documentation.
Built for
project partners
Signage Companies
Design Firms
Franchise Owners
Corporate Accounts
A bright, uninterrupted illuminated face with no visible trim-cap border, creating a cleaner and more architectural front-lit channel-letter appearance.
Artwork feasibility, standard or epoxy face construction, letter depth, face color and graphics, return material and finish, LED color, mounting, wiring exits, shipping, and production requirements.
Technical Specifications
Fabrication data for Trimless Front-lit Channel Letters.
Review both face systems, dimensional planning, illumination, materials, mounting, service access, and quote requirements.
Final specification
Confirmed after artwork review
Illumination
Front-lit / face-lit
Face Systems
Standard acrylic or epoxy resin
Perimeter
Clean trimless appearance
Returns
Aluminum or 304 stainless steel
Mounting
Direct mount or raceway
2 / Core Specs
System-specific production standards.
Standard and Epoxy Trimless Front-lit Channel Letters share the same clean finished appearance, but use different face-construction, LED-placement, and material-selection standards.
Specification
Planning Standard
Production Notes
Letter Style
Trimless Front-lit Channel Letters
Direct face illumination without a visible trim-cap border.
Face Systems
Standard acrylic or epoxy resin
The finished appearance is similar; the internal face construction differs.
Standard Trimless Sizing
Depth-to-stroke matrix
Return depth and stroke width must fall within the approved matrix shown in Size & Depth.
Epoxy Minimum Depth
Greater than 0.78"
Epoxy letters also follow the Standard Trimless depth-to-stroke proportion matrix.
Epoxy Stroke Range
Greater than 3/8" and less than 9.44"
Artwork outside this range requires production review or modification.
Epoxy LED Placement
Side-mounted or front-face-mounted
Under 1.77" stroke: side-mounted LEDs. Over 1.77" stroke: front-face-mounted LEDs.
Epoxy Diffusion Material
Selected by stroke width
The diffusion plate or opal-white acrylic thickness follows the system table in Size & Depth.
Returns
Aluminum or 304 stainless steel
Selected around structure, weight, environment, finish, and fabrication requirements.
LED Color
3500K-6500K white or RGBW
Module spacing, power, and controls are planned for uniform face illumination.
Mounting
Direct mount or raceway
Selected around wall type, code requirements, electrical access, and installer preference.
3 / Size & Depth
Dimensional standards for Standard and Epoxy Trimless systems.
Use the Standard Trimless matrix to coordinate return depth and stroke width. Epoxy Trimless letters follow the same proportion standard and add system-specific rules for LED placement and face-material thickness.
Production Standard
Confirm the face system first, then verify return depth, stroke width,
LED placement, and diffusion material before fabrication.
System 1
Standard Trimless Front-lit
Uses a normal translucent acrylic face. Return depth and stroke width must follow the manufacturer’s approved proportion matrix.
Face Construction
Standard translucent acrylic
Sizing Method
Depth-to-stroke matrix
Final Review
Artwork + LED layout
Standard Matrix
Return depth to stroke width
Both values must remain within the corresponding range.
Return Depth
Stroke Width Range
1-1/4" ≤ depth ≤ 2"
3/8" ≤ stroke ≤ 3/4"
1.57" ≤ depth ≤ 3.15"
3/4" ≤ stroke ≤ 2.36"
2.36" ≤ depth ≤ 4"
2.36" ≤ stroke ≤ 3.15"
3.15" ≤ depth ≤ 5.9"
3.15" ≤ stroke ≤ 4.7"
System 2
Epoxy Trimless Front-lit
Uses an illuminated face with an epoxy-resin surface layer. It follows the Standard Trimless depth-to-stroke matrix and adds specific LED-placement and diffusion-material requirements.
Baseline Requirements
Epoxy system limits
Letter Depth
Greater than 0.78"
Stroke Width
Over 3/8" and under 9.44"
Ratio Standard
Same as Standard Trimless
Epoxy Matrix
LED placement and face material
The 1.77" transition point and final substrate selection are confirmed during production review.
Stroke / Condition
Required Construction
Stroke under 1.77"
Side-mounted LED modules
Stroke over 1.77"
Front-face-mounted LED modules
Stroke under 1.96"
0.08" opal-white diffusion plate
1.96" < stroke < 3.93"
1/8" opal-white acrylic
3.93" < stroke < 9.44"
3/16" or 0.30" opal-white acrylic
Additional Epoxy Standards
Material substitutions and final boundary conditions are confirmed during production review.
Complex Geometry
Use opal-white polycarbonate when required
Long connected characters or designs with many corners may use opal-white PC in place of acrylic.
Acrylic Reference
1/8" opal-white acrylic
For letter depth greater than 0.78", this is the reference acrylic build, subject to the stroke-specific rules above.
Final Engineering
Confirmed from approved artwork
Exact depth, stroke width, LED position, diffusion material, structure, and service access are finalized before fabrication.
1 / Construction
Two face systems with the same clean trimless appearance.
Compare the normal acrylic face with the epoxy-resin face. The finished 3D appearance is the same; the face construction differs.
System 1
Standard Trimless Front-lit Channel Letters
A normal translucent acrylic face creates a bright, uninterrupted front-lit surface without a visible trim-cap border. Its depth and stroke width follow the approved Standard Trimless proportion matrix.
Cross SectionStandard acrylic face assembly
Shows the translucent acrylic face, metal returns, internal LEDs, letter back, wiring, and mounting interface.
Standard Acrylic Face
Finished EffectClean borderless illumination
The illuminated acrylic face remains visually uninterrupted, with no visible trim-cap profile around the perimeter.
FaceTranslucent acrylic
PerimeterTrimless finished edge
Visual ResultBright seamless face
System 2
Epoxy Trimless Front-lit Channel Letters
An epoxy-resin layer is applied over the illuminated face, creating a smooth and seamless finished surface. LED placement and face substrate thickness are selected from the epoxy system standards.
Cross SectionEpoxy-resin face assembly
Shows the epoxy surface layer, illuminated face, metal returns, internal LEDs, letter back, wiring, and mounting interface.
Epoxy Resin Face
Finished EffectSmooth seamless surface
The final illuminated appearance matches the standard trimless style; the epoxy layer changes the face construction and surface finish.
FaceIlluminated face + epoxy resin
SurfaceSmooth resin finish
Visual ResultPremium seamless face
Shared Construction Details
Key components used across both Trimless Front-lit Channel Letter systems.
1
Face SystemStandard acrylic or epoxy resin
The selected face system determines the surface construction while preserving the same clean trimless appearance.
2
ReturnsAluminum or 304 stainless steel
Returns provide depth and structure and can be painted, brushed, polished, or finished to project requirements.
3
LightingInternal front-lit LED system
Module spacing is coordinated with stroke width, return depth, face transmission, and the required illuminated output.
4
InteriorReflective white coating
A reflective interior finish improves LED distribution, face brightness, and consistency.
5
InstallationDirect mount or raceway
Mounting hardware, wire exits, power access, wall construction, and service requirements are confirmed before fabrication.
4 / Lighting
Direct illumination through a seamless trimless face.
Choose fixed white illumination from 3500K to 6500K or an RGBW color-changing system. Face system, graphics, depth, LED spacing, power, and controls are reviewed together.
Lighting Platforms
Static white or RGBW illumination
Internal LEDs illuminate the trimless face for strong nighttime visibility. The final platform is selected around brand color, viewing environment, brightness, and control requirements.
Static White3500K-6500K
Warm white through daylight white for a consistent fixed appearance.
RGBWFull color + dedicated white
Programmable color with a dedicated white channel and compatible controller.
Face TransmissionSystem-specific output
Acrylic color, graphics, and the epoxy surface layer can influence brightness and color appearance.
LED UniformityBalanced module coverage
Return depth, stroke width, corners, face transmission, and module density are coordinated to reduce hotspots.
Power & ControlsLoad and access planned
Power-supply capacity, RGBW controller requirements, dimming, and service access are confirmed before production.
Wiring & ServiceConfirmed before fabrication
Wire exits, remote power or controller locations, raceway routing, wall penetrations, and installer notes are documented early.
5 / Materials & Finish
Materials selected around face construction, visibility, and brand standards.
Face system, return material, graphics, finish, environment, mounting, and lighting are coordinated as one complete assembly.
Standard FaceTranslucent acrylic
Provides a normal illuminated acrylic face with a clean trimless perimeter.
Epoxy FaceIlluminated face with epoxy-resin layer
Adds a smooth resin surface over the illuminated face for a premium seamless finish.
ReturnsAluminum or 304 stainless steel
Selected around structure, weight, environment, fabrication method, and the required finish.
Face Color & GraphicsTranslucent color, vinyl, or UV printing
Compatibility is reviewed around the selected standard or epoxy face system and the required illuminated appearance.
Exterior FinishPMS paint, brushed, polished, or custom
Finish availability depends on return material, geometry, scale, environment, and brand standards.
Interior FinishReflective white coating
Improves LED reflection, brightness, distribution, and consistent face illumination.
6 / Quote Prep
Information required for an accurate quote.
Supplying the core project details upfront helps confirm face-system feasibility, pricing, production requirements, and lead time.
Best Starting Point
Send the artwork.
Vector artwork lets us review stroke width, face construction, depth, LED placement, and feasibility.
Initial Review Covers
1Artwork and stroke feasibility
2Standard or epoxy face system
3Mounting and electrical planning
ArtworkAI, EPS, SVG, or PDF
Vector files are preferred. Clean PDFs or high-resolution references can be used.
SizeWidth or letter height
Send overall width, target height, wall area, or brand-standard drawings.
Face System & FinishStandard acrylic or epoxy resin
Provide the preferred face system, acrylic color, graphics, return material, finish, PMS, or brand references.
Install LocationWall type and site photos
Include interior or exterior use, wall material, access conditions, and photos.
Electrical & Installation Planning
Confirm installation details before production.
Mounting MethodDirect or raceway
Confirm the preferred mounting approach, wall conditions, and permit requirements.
Power SupplyLocation and access
Provide transformer or controller location, access conditions, and available power.
Wire ExitsRouting and pass-throughs
Confirm wire exits, wall penetrations, raceway routing, and installer notes.
